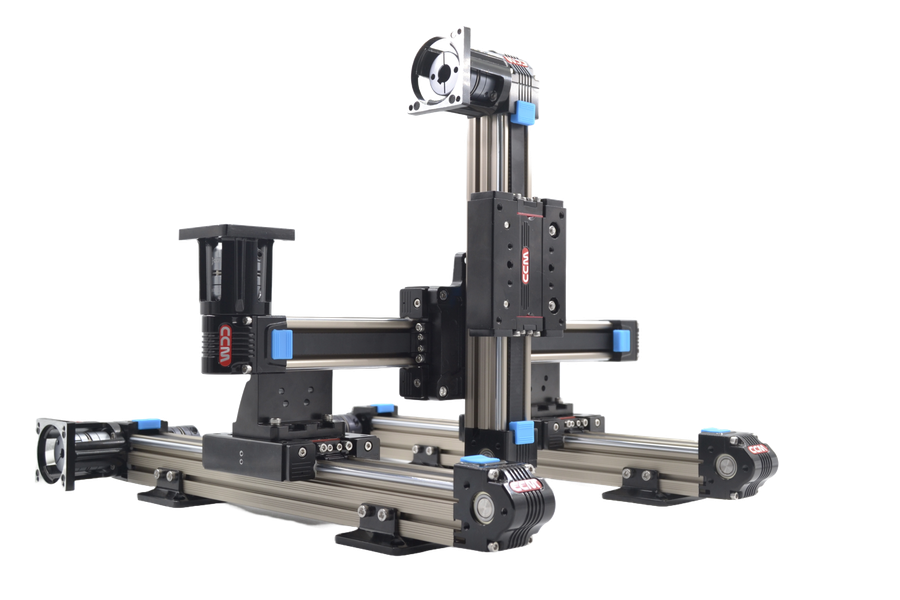

Belt-driven linear guide rails are popular for applications requiring medium to long travel with moderate loads.
Understanding their load capacity is crucial for reliable performance.
In this guide, we'll explore what load capacities belt-driven guides can handle, key influencing factors, and how to design a system that meets your requirements.
Understanding Load Capacity
Load capacity refers to the maximum weight (static and dynamic) that the belt-driven system can support while maintaining performance and longevity. This includes:
- Static Load: Weight when the system is stationary.
- Dynamic Load: Loads during motion, including inertial forces from acceleration/deceleration.
- Side Loads and Moments: Forces perpendicular to travel or moments causing tilt or uneven loading on bearings.
Factors Affecting Load Capacity
- Belt Material & Reinforcement: Belt width, thickness, and reinforcement (steel, Kevlar) influence tensile strength.
- Pulley & Tensioning System: Proper tensioning prevents belt slip under load; pulley diameter affects bending stresses.
- Carriage Design & Bearing Type: Bearing selection (roller vs ball bearings) and carriage structure impact load distribution.
- Rail Profile & Support: Rail rigidity and mounting support determine how loads transmit and deflection behavior.
- Frame & Mounting Structure: Robust supporting frame prevents deflection and maintains alignment under load.
- Speed & Acceleration Profiles: Higher accelerations increase dynamic loads; design for peak conditions.
- Environmental Conditions: Temperature, contaminants, and chemicals can weaken belts or increase wear.
- Safety Factors: Design with safety margins (e.g., 1.5x to 2x expected loads) to ensure longevity.
Calculating Load Capacity
Steps to estimate load capacity:
Determine Application Loads: Calculate static weight, plus dynamic forces from acceleration (F = m*a) and deceleration.
Select Belt Specifications: Check manufacturer data for belt tensile strength and allowable tension.
Evaluate Pulley and Tensioner Limits: Ensure pulleys and tensioners can handle required belt tension without excessive wear.
Examine Rail and Bearing Ratings: Use rail manufacturer load ratings (radial, axial, and moment capacities).
Add Safety Factors: Multiply expected loads by safety factor to account for uncertainties.
Iterate and Validate: Prototype testing under real conditions to validate calculations and adjust design.
Typical Load Ranges
While specific values vary by manufacturer and system size, typical belt-driven guides handle:
Light-Duty Systems: Up to ~20-50 kg carriage load.
Medium-Duty Systems: ~50-150 kg, depending on belt width and reinforcement.
Heavy-Duty Configurations: With wider belts, dual-belt arrangements, and reinforced frames, up to ~200-300 kg in some cases.
Note: Always refer to manufacturer datasheets and perform testing under your specific conditions.
Design Considerations for Higher Loads
Dual or Multiple Belts: Distribute load across multiple belts for increased capacity.
Wider Belts & Reinforcement: Use belts with higher tensile ratings (e.g., steel or Kevlar reinforced).
Enhanced Carriage Bearings: Select bearings rated for higher radial and axial loads.
Stiffer Frame and Rail Support: Reinforce mounting to minimize deflection under load.
Active Tensioning Systems: Automated tensioners to maintain optimal tension as belts wear.
Redundant Safety Mechanisms: Overload sensors or torque limiters to prevent damage.
Regular Inspection & Maintenance: More frequent checks under heavy-duty use.
Pros & Cons Summary
Pros:
- Suitable for moderate loads with proper design
- Cost-effective compared to screw drives for certain load ranges
- Scalable via multiple belts and reinforcements
- Easy maintenance with replaceable belts
Cons:
- Not ideal for extremely heavy loads without significant design adjustments
- Belt stretch may affect precision under high load
- Requires careful tensioning and robust support structures
- Environmental factors can limit belt strength and durability
Frequent Questions
Q: How do I choose the right belt for my load?
A: Consult manufacturer specs for tensile strength; consider belt width, reinforcement, and safety factor.
Q: Can I add more belts to increase capacity?
A: Yes, dual or multiple belts can be used, but ensure pulleys and tensioners support this configuration.
Q: How does speed affect load capacity?
A: Higher speeds increase dynamic forces; account for inertial loads in calculations.
Q: What happens if the belt is overloaded?
A: Overloading can cause belt slip, accelerated wear, or breakage; include overload protection in design.
Q: Is testing necessary?
A: Absolutely. Real-world testing validates calculations and reveals unforeseen issues like alignment problems.
