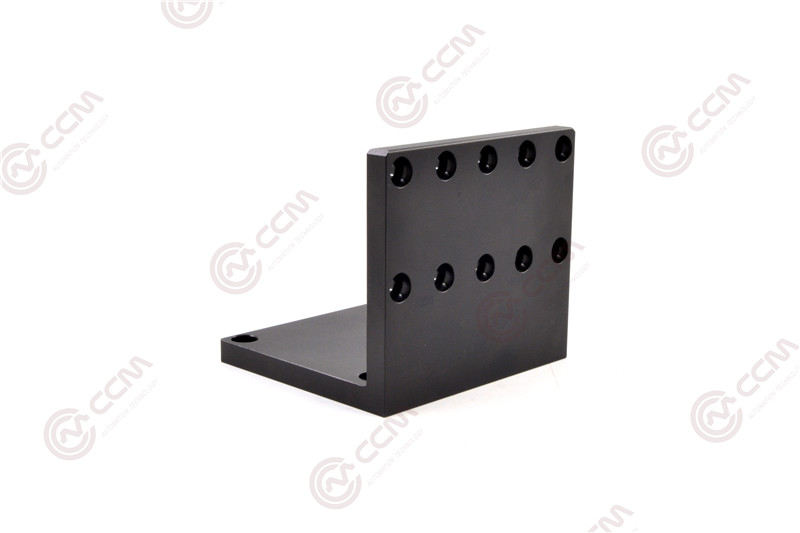

L shape connecotor

To build XY/XYZ linear stage



  • L shape connector L1(J)—To W40 model



  • L shape connector L2(J)/(Y)—To W45 model

  • L shape connector L3(J)—To W50 model



  • L shape connector L4(J)—To W60 model

Mounting drawing
Mounting drawing
