CCM Belt-drive linear guide rails, Precision Motion, Trusted Worldwide
Industry Pioneers and Innovators
CCM Automation Technology the First to introduce industrial and last long linear guide belt technology in China, becoming the most widely used linear guide rails in assembly lines, smart packaging, and automation projects across China and Asia. Our belt-driven rails are crafted with top materials, and built to outperform in the most demanding applications.

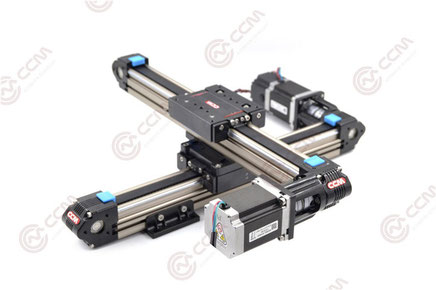

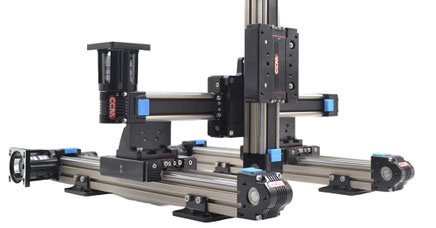

Timing Belt Drive Actuators
Full Load & Speed Coverage: From ultra-light 2–3 kg stages to heavy-duty 40–60 kg
High Precision & Smooth Motion: All series deliver stable positioning with repeatability down to ±0.04 mm
Scalable Stroke Lengths: From compact 300 mm units to long-travel axes reaching 20 meters

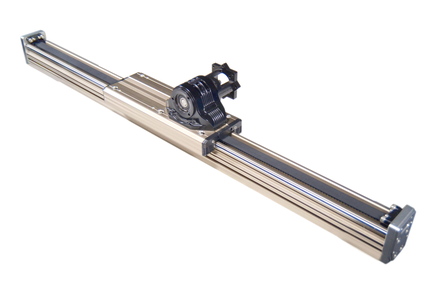

Wide Design Variants: Slim-enclosed, high-rigidity, side-load, motor-on-carriage, long-carriage, high-speed, and rotational hybrid versions
Various speeds: from low-noise micro-motion up to 3.5 m/s
Embedded Lead Ball Screw
High-Precision Performance: Delivers ±0.01 mm repeatability with smooth, stable motion
Strong Load Capabilities: Supports 30–120 kg depending on the model, for medium to heavy-duty industrial systems.
Long Stroke Options: Available with strokes up to 1250 mm, suitable for high-accuracy equipment.
Semi-Enclosed, Clean Operation: Provides added protection against dust and contaminants while maintaining reliable, repeatable performance.
Various speeds: from low-noise micro-motion up to 1 m/s

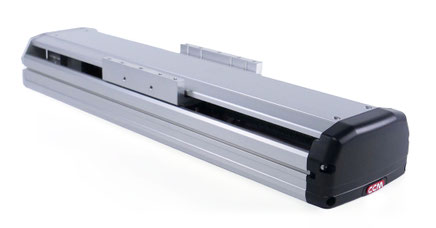

Integrated Lead Ball Screw
High Precision Dual-Screw Design: Provides ±0.01 mm repeatability with synchronized dual lead screws for maximum stability and accuracy.
Strong Load Capacity: Supports 110–120 kg horizontal loads, delivering exceptional rigidity for medium-to-heavy industrial applications.
Smooth, Low-Noise Motion: 0% vibration- travel even under heavier payloads and long-stroke movements.
Robust Construction: Hardened aluminum body with precision machining ensures long service life, consistent linear performance, and minimal maintenance.
Ideal for Demanding Automation: Perfect for AOI machines, cartesian robots, and high-precision positioning requiring strong structural rigidity.

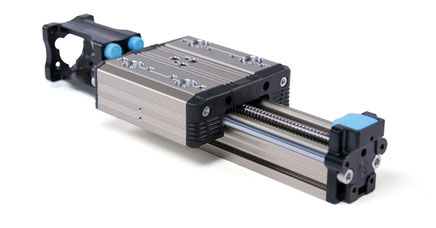

Guide Rail Ball Screw
Ultra-Compact Precision Actuator: Slim, lightweight design with ±0.02 mm repeatability for micro-precision in tight spaces.
Light-Load Performance: Supports up to 5 kg with smooth, stable motion—ideal for small automation, 3D printers, and light pick & place.
Quiet & Efficient Travel: Engineered for low-noise, low-vibration movement in compact equipment.
Durable & Low Maintenance: Hardened aluminum structure and plated components ensure long life with minimal servicing.
Perfect for Small-Scale Automation: Excellent for precision mechanisms, inspection slides, benchtop robots, and prototyping systems.
Our Clients & Partners
Precision Belt-Driven Linear Actuators with Guide Rails
Our belt-driven linear actuators are built for engineers who demand reliability and performance. Each unit
features hardened steel linear guide rails, smooth-gliding linear guide sliders, and sealed bearings for low friction and long service life. Designed for heavy-duty automation, they’re capable of handling high loads
with ease.
As a direct manufacturer, we offer competitive factory pricing without compromising quality. Compare us—you’ll find unmatched value in our performance range.
In ccm, we use material from top global supply, and our quality and design maximize the lifespan of each component.
Confidence, technical support, and warranty will give you the confidence to work with us.
The linear module is divided into two types: the screw slide and the synchronous belt slide.
It is a precision type ready-to-install linear system. The belt driven linear actuator kit has a compact size and high performance index, and any length.
Cost-effective and short delivery. Compact and precise aluminum profile body, built-in ball guide and belt guide system for operation and movement at heavy loads and high speeds.
