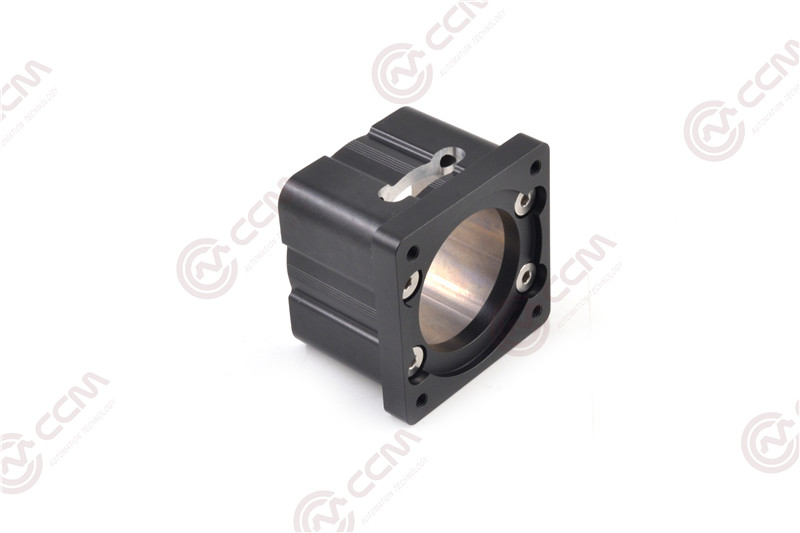

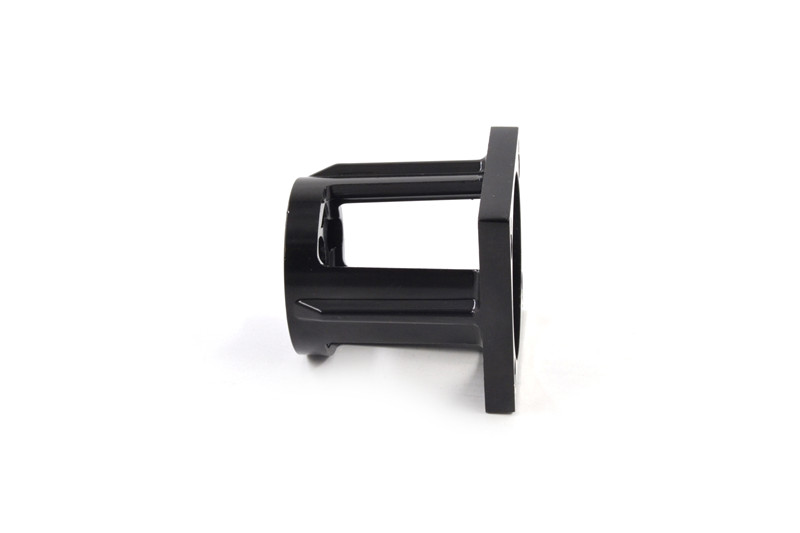

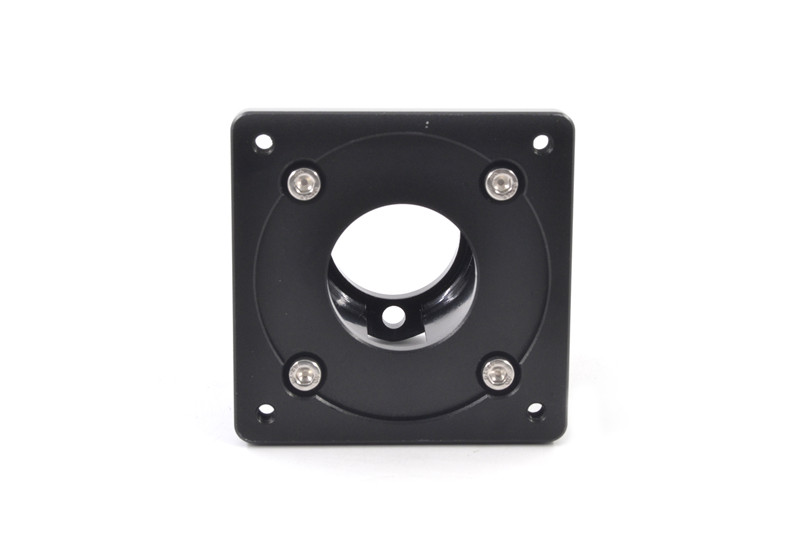

Motor Bracket

To mount motor on linear belt driven actuator

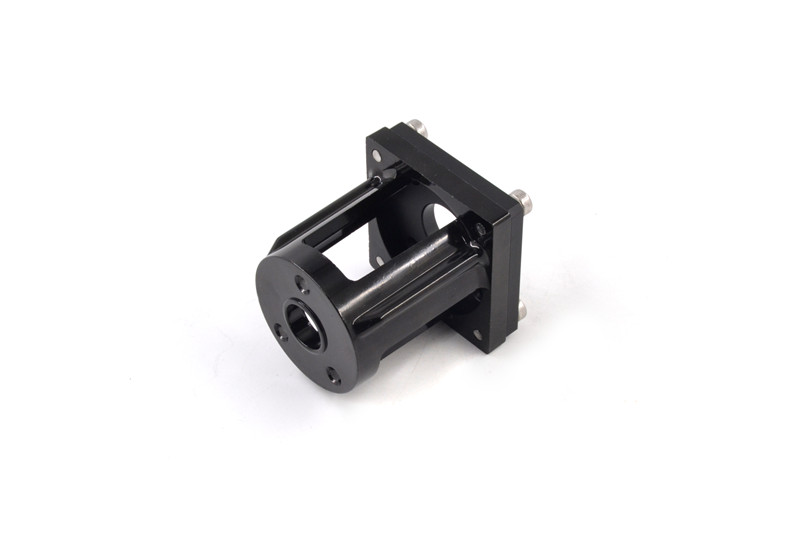

1.Motor bracket to Nema17 stepper

—To W40/W45 model

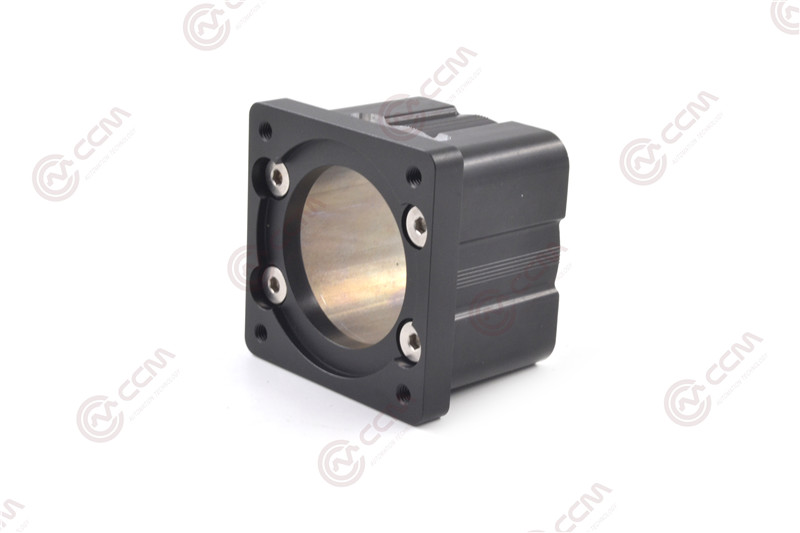

2.Motor bracket to 100W servo

—To W40/W45 model

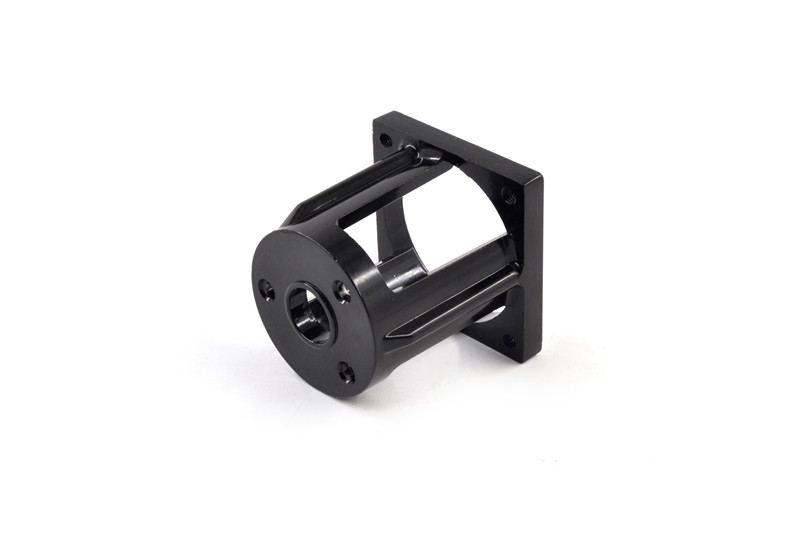

3.Motor bracket to Nema23 stepper

—To W40/W45 model

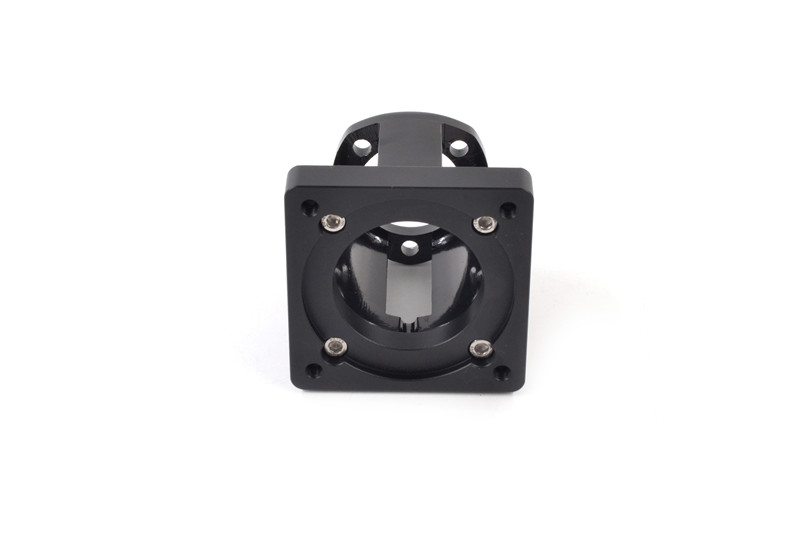

4.Motor bracket to 400W servo

—To W40/W45 model

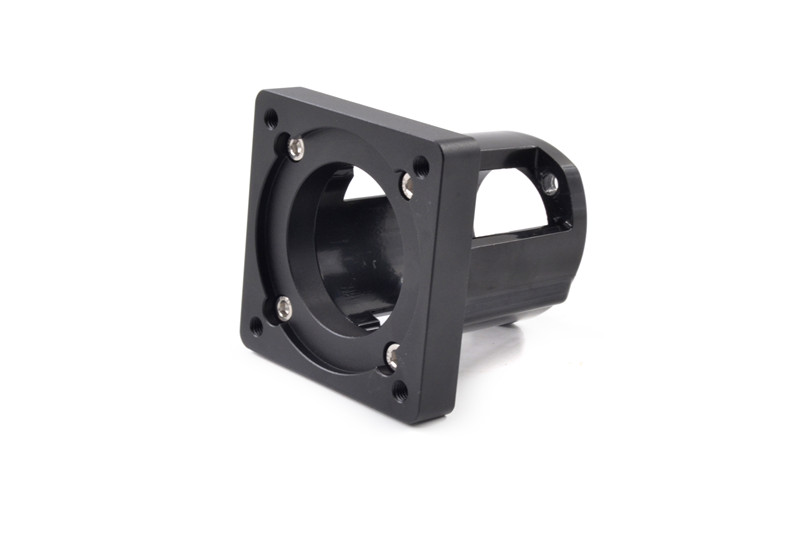

5.Motor bracket to Nema23 stepper

—To W50/W60 model

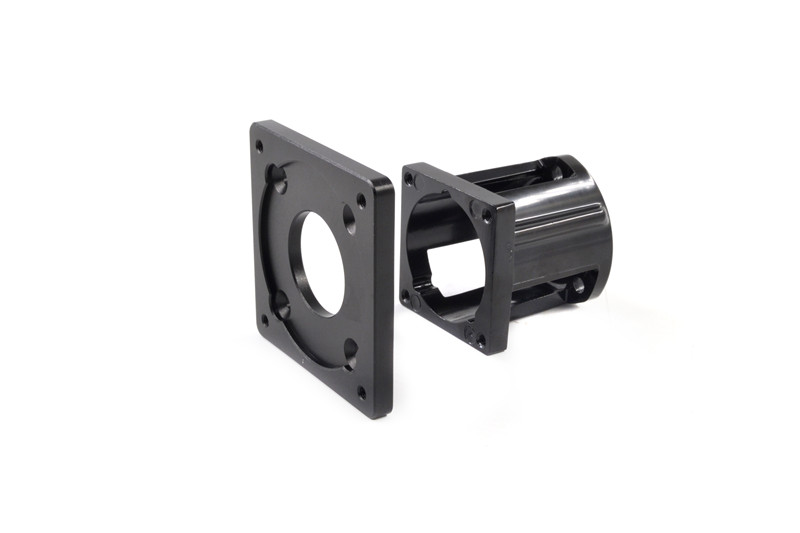

6.Motor bracket to 400W servo

—To W50/W60 model

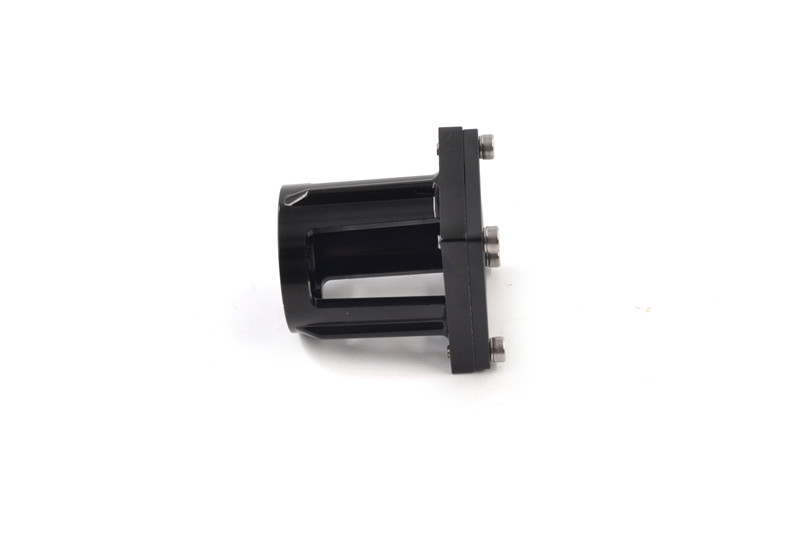

7.Motor bracket to Nema34 stepper

—To W50/W60 model

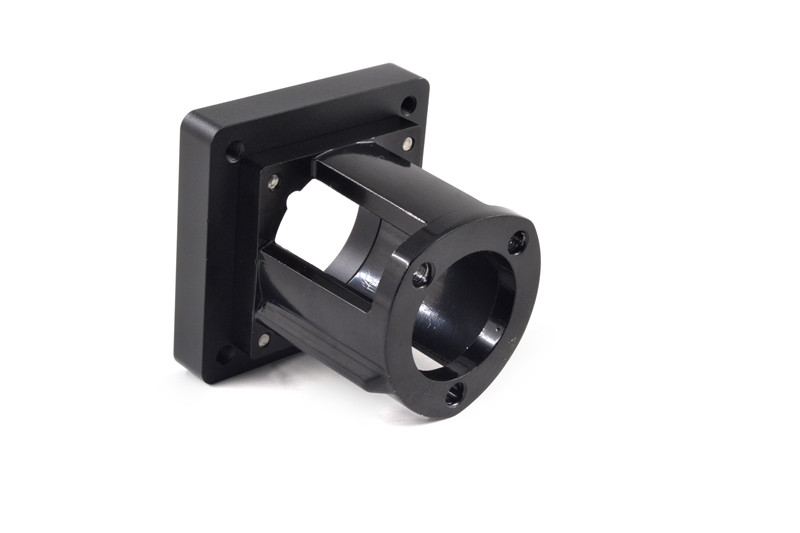

8.Motor bracket to 750W servo

—To W50/W60 model

9.Motor bracket

—To H80/L80/Z80 model



Mounting drawing for 1/2/7/8
Mounting drawing for 1/2/7/8
Mounting drawing for 3/4/5/6
Mounting drawing for 3/4/5/6
