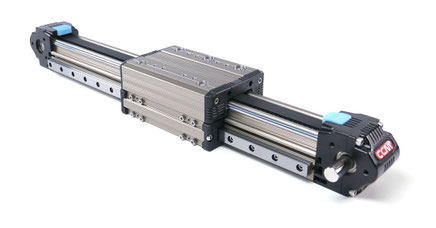

Q Series Belt Drive Actuators with Guideway Rail
| Model | Max Load (horizontal) | Max Load (vertical) | Max Speed | Custom Length | Repeatability | |
| Q45-15 | 15 Kg | 7 Kg | ≤ 1.5 m/s | ≤ 6 m | ± 0.04 mm | See this model |
| Q60-35 | 35 Kg | 15 Kg | ≤ 2 m/s | ≤ 6 m | ± 0.04 mm | See this model |
Q45-15 Belt Drive Actuator Linear Guide Rail
The Q45-15 model is suitable for applications where lateral loads, pick-and-place systems, and automated testing stations add extra dimensional objects or lateral force. With a 15kg load capacity, 1.5m/s speed, ±0.04 repeatability, it ensures precise and smooth motion. The customizable length (up to 6 meters) and straightness make it ideal for moderate-duty material handling, packaging systems, and inspection tasks requiring high accuracy and reliability in medium-scale automation applications.
Q60-35 Belt Driven Actuator Linear Guide Rails
The Q60-35 model is suitable for applications with medium CNC machines, pick-and-place systems, and robotic arms. With a 35 kg load capacity, 2 m/s speed, ±0.04 mm repeatability, it provides precise and smooth motion. The customizable length (up to 6 meters) and straightness make it ideal for moderate to heavy-duty material handling, packaging, and inspection systems requiring accuracy and reliability in medium-duty automation applications.
