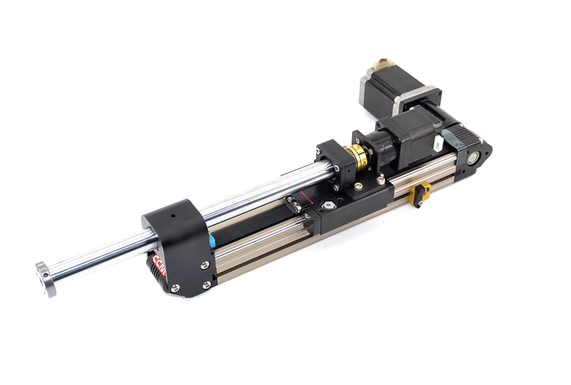

TX Series Linear Rail With Rotating Cylinder
Looking for the Right Linear Guide Rail for Your Application?
We understand how overwhelming it can be to choose the right linear guide rail when so many options online look similar and claim high performance. That’s why we’ve made it simple for you.
You have two clear options:
1. Stay here and check the technical specifications of our precision-engineered linear guide rail modules.
or check
2. How to Choose the Right Belt-Driven Linear Rail—Without Wasting Time or Money. Avoid common pitfalls, decode tech specs, and find the rail that fits your application perfectly.
Features
1) high accuracy
2) customised length up to 4 meters
3) anti-corrosion
4) maintenance-free
5) noiseless
6) low vibration
7) high reliability
8) high durability
9) flexible add-ons
Applications
Robotic arms
Sensor / camera adjustment
Applicator/dispenser positioning
Ejector/diverter mechanisms
Pneumatic cylinder replacement
How to order
1) Share your idea with us.
2) Provide us with weight of the load and stroke length for each axis, together with travel speed and structure.
3) Estimate costs/ quotation.
4) Put your order to production after payment.
5) Arrange the shipping for you.
6) Comment on the products and service so we can do better.

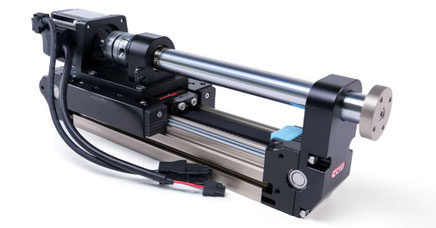

TX40 Series Electric Cylinders – Technical Overview
The TX40 series features compact, high-precision electric cylinders designed for automation tasks that demand controlled force, smooth motion, and reliable performance. Each model offers a different stroke length, making them adaptable to a wide range of applications. Below is a breakdown of each variant:
-
Cylinder TX40-70:
Provides a push stroke of 70 mm, with a rail length of 290 mm and a total length of 320 mm. Weight is 1.5 kg. It features a 75 mm lead screw pitch, pull speed of 0–375 mm/s, and rotation speed of 0–2 rpm. -
Cylinder TX40-120:
Offers a 120 mm stroke, 340 mm rail length, and 370 mm total length. It weighs 2 kg, with the same 75 mm pitch, 0–375 mm/s pull speed, and 0–2 rpm rotation. -
Cylinder TX40-170:
Delivers a 170 mm stroke, 390 mm rail length, and total length of 420 mm. Weighs 2.5 kg. Same pitch and motion specs as above. -
Cylinder TX40-220:
Comes with a 220 mm stroke, 440 mm rail, and a total length of 470 mm. Weight is 3 kg, maintaining a 75 mm pitch and consistent speed specs. -
Cylinder TX40-270:
Features a 270 mm push stroke, 490 mm rail, and 520 mm overall length. Weighs 3.5 kg. Same mechanical specs apply. -
Cylinder TX40-320:
The largest model, with a 320 mm stroke, 540 mm rail, and total length of 570 mm. It weighs 4 kg. Speed and pitch specs remain unchanged.
TX Series Linear Module Specifications
-
Stroke Length: 70–320 mm
-
Linear Module Total Length: L + 220 mm
-
Pitch: 75 mm
-
Repetition Accuracy: ≤ 0.1 mm
-
Acceleration: ≤ 10 m/s²
-
Load Capacity: ≤ 2 kg
-
Vertical Movement Speed: ≤ 300 mm/s
-
Horizontal Movement Speed: ≤ 500 mm/s
-
Rotation Speed: ≤ 80 rpm
-
Rotation Accuracy: ≤ 15′
-
Working Temperature: -20°C to +60°C
-
Service Life: 5 million double strokes
-
Max Load:
-
Fx / Fy / Fz: 20 N
-
Mz: 2.0 N·m
-
Key Features Across the Series
-
High-precision linear motion with low vibration.
-
Consistent 75 mm lead screw pitch for predictable motion.
-
Pull speed of up to 375 mm/s.
-
Adjustable rotation speed from 0 to 2 rpm.
-
Compact, modular design, ideal for industrial automation, assembly lines, pick-and-place applications, and positioning systems.

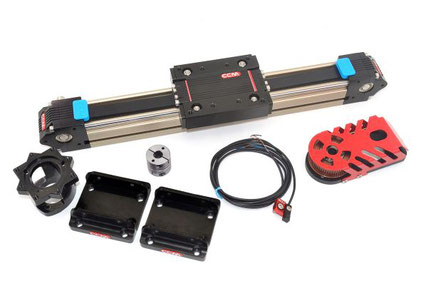

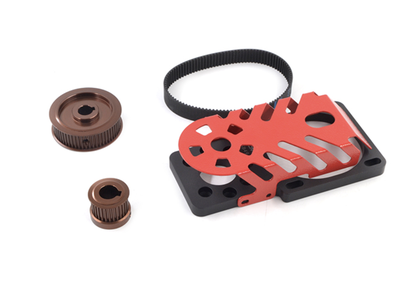

Accesories for linear guide rails
