H Series Belt Driven Rail Actuators Modules
| Model | Max Load (horizontal) | Max Load (vertical) | Max Speed | Custom Length | Repeatability | |
| H45-20 | 20 Kg | 10 Kg | ≤ 1.5 m/s | ≤ 20 m | ± 0.04 mm | See this model |
| H60-40 | 40 Kg | 20 Kg | ≤ 2 m/s | ≤ 20 m | ± 0.04 mm | See this model |
| H80-50 | 50 Kg | 25 Kg | ≤ 3.5 m/s | ≤ 20 m | ± 0.04 mm | See this model |

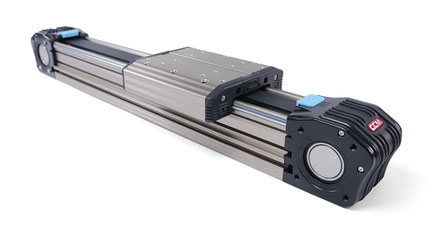

H45-20 Linear guide rail belt driven
The H45-20 model is designed for medium-duty applications such as pick-and-place systems, light robotic arms, and automated testing stations. With a 20 kg load capacity, 1.5 m/s speed, 0.04 mm repeatability, and Accuracy, it ensures precise and smooth motion. The customizable length (up to 20 meters) and straightness make it ideal for light to medium material handling, inspection systems, and automation tasks requiring high accuracy and reliability.
H60-40 Linear guide slider modular rail actuator motion
The H60-40 model is ideal for medium-duty applications such as robotic arms, pick-and-place systems, and automated material handling. With a 40 kg load capacity, 2 m/s speed, 0.04 mm repeatability, and accuracy, it provides smooth, precise, and reliable motion. The customizable length (up to 20 meters) makes it well-suited for medium to heavy-duty automation tasks that require accuracy and flexibility, such as packaging, inspection systems, and automated testing.
H80-50 Linear actuator modular belt driven
The H80-50 model is designed for medium to heavy-duty applications such as robotic arms, material handling systems, and automated testing stations. With a 50 kg load capacity, Max speed 3.5M/s, 0.04 mm repeatability, and accuracy, it ensures precise and smooth motion. The customizable length (up to 20 meters) and straightness make it ideal for applications requiring robust performance and high accuracy, such as packaging, inspection systems, and industrial automation.
