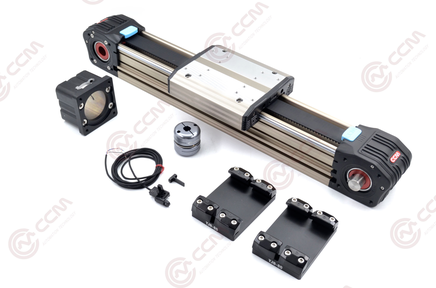

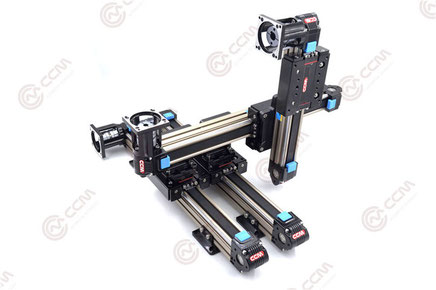

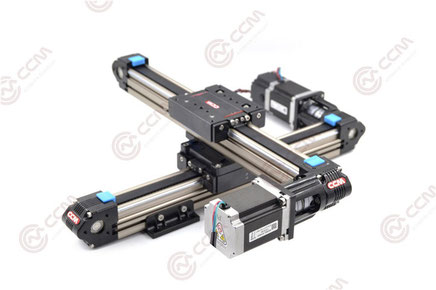

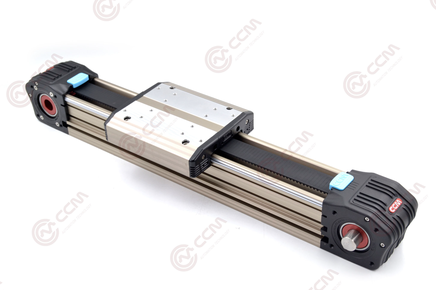

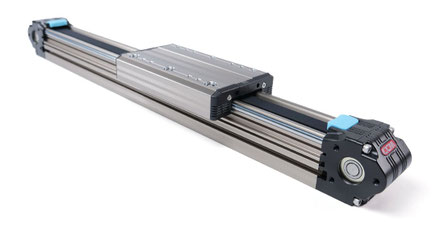

CCM L Series Linear Guide Actuators Belt Driven
| Model | Max Load (horizontal) | Max Load (vertical) | Max Speed | Custom Length | Repeatability | |
| L45-15 | 15 Kg | 7 Kg | ≤ 1.5 m/s | ≤ 20 m | ± 0.04 mm | See this model |
| L60-35 | 35 Kg | 15 Kg | ≤ 2 m/s | ≤ 20 m | ± 0.04 mm | See this model |
| H80-50 | 50 Kg | 25 Kg | ≤ 3.5 m/s | ≤ 20 m | ± 0.04 mm | See this model |
L45-15 Series Guide Actuator Rail Belt Driven
The L45-15 model is suitable for applications like small CNC machines, pick-and-place systems, 3D printers, automated testing stations, lightweight robotic arms, packaging machines, inspection systems, conveyors, and XY motion systems. With its 15 kg load capacity, 1.5 m/s speed, high precision (0.04 mm repeatability), and customizable length (up to 20 meters), it ensures smooth, accurate, and repeatable motion for various light to medium-duty automation tasks.
L60-35 Series Guide Actuator Rail Belt Driven
The L60-35 model is suitable for medium-duty applications like CNC machines, pick-and-place systems, 3D printers, robotic arms, and conveyor systems. With a 35Kg load capacity, 2 m/s speed, 0.04 mm repeatability, and accuracy, it offers high precision and stable motion. The customizable length (up to 20 meters) and torque ensure efficient handling of medium-sized components, making it ideal for applications that require accuracy, speed, and moderate load handling.
L80-60 Series Guide Actuator Rail Belt Driven
The L80-60 model is ideal for heavy-duty applications such as large CNC machines, pick-and-place systems, robotic arms, and packaging lines. With a 60 kg load capacity, Max speed 3.5 m/s, 0.04 mm repeatability, and accuracy, it offers excellent precision and stability. Its customizable length (up to 20 meters) ensures versatility for handling larger loads, making it perfect for tasks requiring high performance, speed, and accuracy in medium to heavy-duty automation systems.
