CCM W Series Linear Guide Rail Belt Drive

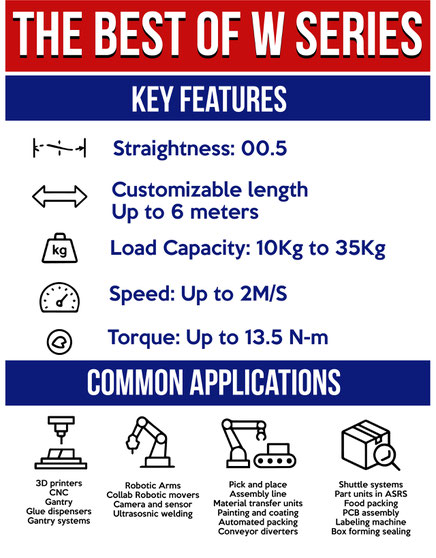

Designed for speed, flexibility, and durability, the CCM W Series belt-driven linear actuators are built to power modern automation systems. With long stroke customization, smooth motion, and consistent accuracy, the W Series is widely used in pick-and-place automation, Cartesian robots, and multi-axis gantry systems. Its modular design allows easy integration with stepper or servo motors, helping manufacturers build scalable, high-performance automation solutions with confidence.
| Model | Max Load (horizontal) | Max Load (vertical) | Max Speed | Custom Length | Repeatability | |
| W40-03 | 4 Kg | 2 Kg | ≤ 1.5 m/s | ≤ 20 m | ± 0.04 mm | See this model |
| W40-10 | 10 Kg | 5 Kg | ≤ 1.5 m/s | ≤ 20 m | ± 0.04 mm | See this model |
| W45-15 | 15 Kg | 7 Kg | ≤ 1.5 m/s | ≤ 20 m | ± 0.04 mm | See this model |
| W50-25 | 25 Kg | 10 Kg | ≤ 2 m/s | ≤ 20 m | ± 0.04 mm | See this model |
| W60-35 | 35 Kg | 15 Kg | ≤ 2 m/s | ≤ 20 m | ± 0.04 mm | See this model |
W40-03 Linear Guide Rail Belt Driven
The W40-10 model is suitable for light applications like 3D printers, small gantry machines, and automated pick and places. With a 3Kg load capacity, 1.5 m/s speed, ±0.04 mm repeatability, it ensures precise and smooth motion. The customizable length (up to 20 meters) and straightness make it ideal for light-duty material handling, packaging systems, and inspection tasks requiring high accuracy and reliability in moderate automation applications.

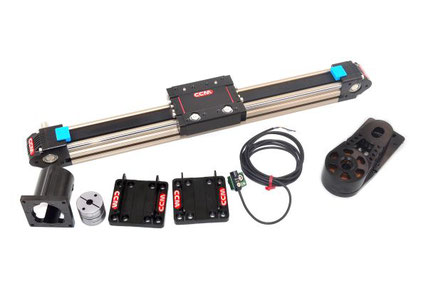

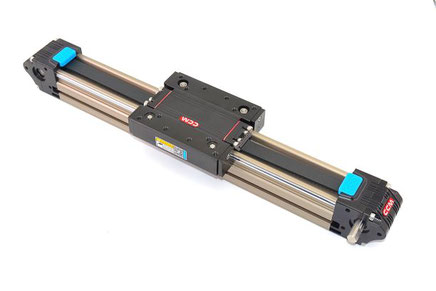

W40-10 Linear Guide Rail Belt Driven
The W40-10 model is suitable for applications like light robotic arms, small CNC machines, and automated testing systems. With a 10 kg load capacity, 1.5 m/s speed, ±0.04 mm repeatability, it ensures precise and smooth motion. The customizable length (up to 20 meters) and straightness make it ideal for light-duty material handling, packaging systems, and inspection tasks requiring high accuracy and reliability in moderate automation applications.

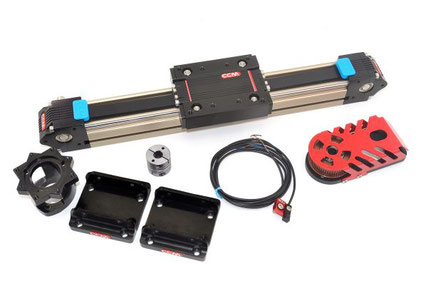

W45-15 Linear Guide Rail Belt Driven
The W45-15 model is suitable for applications like small CNC machines, pick-and-place systems, and automated testing stations. With a 15 kg load capacity, 1.5 m/s speed, ±0.04 mm repeatability, and accuracy, it ensures precise and smooth motion. The customizable length (up to 20 meters) and straightness make it ideal for light-to-medium-duty material handling, packaging systems, and inspection tasks requiring accuracy and reliability in moderate automation applications

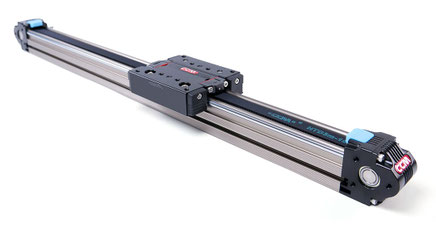

W50-25 Linear Guide Rail Belt Driven
The W50-20 model is suitable for applications like small CNC machines, pick-and-place systems, and automated testing stations. With a 25 kg load capacity, 2 m/s speed, ±0.04 mm repeatability, and accuracy, it ensures precise and smooth motion. The customizable length (up to 20 meters) and straightness make it ideal for moderate-duty material handling, packaging systems, and inspection tasks requiring high accuracy and reliability in medium-scale automation applications.
W60-35 Linear Guide Rail Belt Driven
The W60-35 model is suitable for applications like medium CNC machines, pick-and-place systems, and robotic arms. With a 35 kg load capacity, 2 m/s speed, ±0.04 mm repeatability, and accuracy, it provides precise and smooth motion. The customizable length (up to 6 meters) and straightness make it ideal for moderate to heavy-duty material handling, packaging, and inspection systems requiring accuracy and reliability in medium-duty automation applications.
