All Our Linear Guide Rails Models

Medium Load, Medium Speed Performer: Handles 3–35 kg loads with smooth motion up to 2 m/s, ideal for versatile automation.

High Precision: Delivers ±0.04 mm repeatability, ensuring stable and accurate positioning for demanding applications.

Ultra-Quiet Motion: TSW patented timing belt + CNC pulleys reduce noise by up to 20%, providing silent, vibration-free operation.

Long-Stroke Capability: Fully customizable rail lengths up to 20 meters, perfect for large automation systems and multi-axis gantries.

Durable & Corrosion-Resistant: Hardened aluminum profile, plated rods, and plated bearings ensure long service life and minimal wear.

Low Maintenance: Plated rods, precision endblocks, and high-quality components require only occasional lubrication.

Reliable for Continuous Cycles: Designed to withstand ongoing industrial use under mid-to-heavy-load conditions.

Great for Wide Applications: Ideal for 3D printers, pick & place, glue dispensing, and general industrial motion tasks.

High Load Capacity: Handles 20–50 kg horizontal and up to 25 kg vertical, making it ideal for mid-to-heavy automation.

High Speed + Silent Motion: Runs up to 2 m/s (and up to 3.5 m/s depending on configuration) with ultra-low noise thanks to the patented TSW timing belt and CNC pulleys.

Custom Lengths up to 20 meters: Fully customizable rail length for large machines, long-stroke cartesian robots, and industrial automation.

High Rigidity & Durability: Hardened aluminum extrusions, plated rods, and precision endblocks ensure long service life with stable, vibration-free motion.

Low Maintenance: Plated rods and bearings require very little servicing; only occasional lubrication and belt tensioning.

Excellent Precision: Provides ±0.04 mm repeatability, suitable for AOI, pick & place, and cartesian systems.

Compatible With High-Power Motors: Supports Nema 17–42 and motor powers up to 1500 W, ideal for heavy tooling and high-force applications.

Extra-Long Carriage for Bigger Loads: Designed with an extended slider to support medium to high loads (15–60 kg) with excellent stability.

Silent, High-Speed Motion: Powered by the patented TSW timing belt and CNC pulleys, reducing noise by up to 20% even at high speeds up to 3.5 m/s.

Custom Lengths up to 20 m: Fully customizable rail length, ideal for long-travel automation and large cartesian robots.

High Precision: Delivers ±0.04 mm repeatability, suitable for AOI systems, pick & place, and industrial positioning.

High Rigidity & Strength: Hardened aluminum extrusion + plated rods/bearings ensure long-lasting performance under continuous duty cycles.

Low Maintenance: Plated bearings and rods require minimal servicing—only occasional lubrication and belt tensioning.

Flexible Motor Options: Compatible with Nema 17–42 and motors from 100 W up to 1500 W, supporting both light and heavy tooling.

Side-Mount Specialist: Designed for lateral-load applications, offering excellent resistance to eccentric (offset) loads.

Medium Load, Medium Speed, High Torque: Supports 15–35 kg loads with strong torque ratings, ideal for gantry and cartesian systems.

Silent & Smooth Motion: Uses the TSW patented timing belt + CNC pulleys, cutting mechanical noise by up to 20%.

High Precision: Provides ±0.04 mm repeatability, ensuring stable, accurate positioning for automation tasks.

Custom Lengths up to 20 m: Perfect for long-travel axes, gantries, and multi-axis systems needing extended reach.

Rigid & Durable: Hardened aluminum extrusion + plated rods and bearings deliver long service life with minimal friction.

Low Maintenance: Occasional lubrication and belt tensioning are all that’s needed; components are plated for protection.

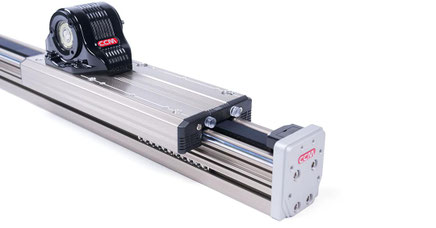

Self-Propelled Design: Motor sits on the slider, saving end-block space and making it ideal for compact or tight machine layouts.

Perfect for Long-Stroke Motion: Custom lengths up to 6 meters, with smooth, stable travel for large-format automation.

Medium Load, Low Speed, High Stability: Handles 15–50 kg loads with very low vibration—excellent for AOI, dispensing, and precision assembly.

High Precision: Achieves ±0.04 mm repeatability, ensuring consistent and accurate movement across long strokes.

Quiet & Smooth: Uses the TSW timing belt + CNC pulleys, reducing mechanical noise up to 20%.

Rigid Build: Hardened aluminum extrusion and plated rods/bearings deliver durability and low maintenance under continuous cycles.

Low Maintenance: Only occasional lubrication and belt tensioning required.

Easy Endblock Adjustment: Designed for quick and simple belt tensioning without removing the load from the carriage.

Silent, Smooth Belt-Driven Motion: Medium-speed, medium-load actuator supporting 20–25 kg with very low vibration.

High Precision: Offers ±0.04 mm repeatability, ideal for 3D printers, glue dispensers, and compact cartesian robots.

Long-Stroke Capability: Custom lengths available up to 20 meters, perfect for wide-format or long-travel automation.

Ultra-Quiet Operation: TSW patented timing belt and CNC pulleys reduce mechanical noise by up to 20%.

Rigid & Durable Construction: Hardened aluminum extrusion with plated rods and bearings ensures stability and long service life.

Low Maintenance: Requires only minimal lubrication and occasional belt tensioning.

High-Speed, High-Load Performance: Built for demanding automation, handling up to 40 kg loads at speeds up to 3.5 m/s.

Designed for 24/7 Operation: Engineered for continuous, high-intensity industrial use with long-lasting belt tension and stable performance.

High Precision: Offers ±0.04 mm repeatability, ensuring accurate and consistent positioning for gantries, AOI, and pick & place.

Long-Travel Capability: Custom lengths available up to 20 meters, making it ideal for large-format automation and gantry systems.

Quiet & Smooth Motion: TSW patented timing belt with CNC pulleys reduces mechanical noise by up to 20%.

Durable Construction: Hardened aluminum extrusion, plated rods, and high-end endblocks ensure rigidity and long service life under heavy loads.

Low Maintenance: Plated bearings and rods require only minimal lubrication and occasional tensioning.

Compact, Fully Enclosed Design: Perfect for applications where space is limited and protection from external elements is important.

High Precision: Offers ±0.04 mm repeatability, ensuring accurate and repeatable movement for light-to-medium duty automation.

Light to Medium Load Capacity: Supports loads from 15 kg to 30 kg, ideal for AOI, pick & place, and compact cartesian robots.

Smooth, Quiet Motion: Equipped with the TSW patented timing belt + CNC pulleys, reducing mechanical noise by up to 20%.

Custom Lengths up to 20 m: Suitable for long-travel automation, inspection systems, and compact gantry axes.

Low Maintenance: Plated rods and bearings require only occasional lubrication and belt tensioning.

Durable, Corrosion-Resistant Build: Hardened aluminum body with anodized endblocks ensures long service life.

High Speed for Its Size: Reaches speeds up to 2 m/s while maintaining stability and low vibration.

Built for High-Intensity, 24/7 Work: Designed for nonstop, heavy-duty automation where continuous operation is required.

High Load & High Speed: Handles up to 25 kg loads with speeds reaching 3.5 m/s, making it ideal for demanding industrial setups.

High Precision: Offers ±0.04 mm repeatability, ensuring accurate and repeatable positioning in fast-motion environments.

Custom Lengths up to 20 m: Suitable for long-travel machines, AOI, cartesian robots, and extended gantry axes.

Durable & Rigid Construction: Hardened aluminum extrusion, plated rods, and high-end endblocks provide strength and long service life.

Smooth Motion with Slight Noise: Uses the TSW patented timing belt and CNC pulleys, delivering strong power transfer with slightly higher noise due to its high-load design.

Low Maintenance: Plated bearings and rods require only occasional lubrication and belt tensioning.

Reliable for Heavy Cycles: Engineered to withstand continuous cycles under heavy loads with minimal downtime.

Built for 24/7 High-Intensity Work: Designed for nonstop motion, perfect for industrial applications requiring continuous, high-load cycles.

High Load & Speed Performance: Handles 30–40 kg loads with speeds up to 3.5 m/s, delivering strong torque and stability for demanding automation.

High Precision: Offers ±0.04 mm repeatability, ensuring accurate, smooth, and consistent positioning in high-speed environments.

Custom Lengths up to 20 m: Suitable for long-travel AOI machines, cartesian robots, and large-format automation systems.

Reinforced, Durable Build: Hardened aluminum profile, plated rods, and robust endblocks ensure rigidity and long service life.

Smooth Motion with Slight Noise: Uses TSW patented timing belt + CNC pulleys for powerful motion, with slightly more noise due to its high-load configuration.

Low Maintenance: Plated bearings and rods require only minimal lubrication and occasional belt tensioning.

Excellent for Heavy-Duty Cartesian Robots: Optimized for gantry systems, pick & place, and high-speed industrial automation.

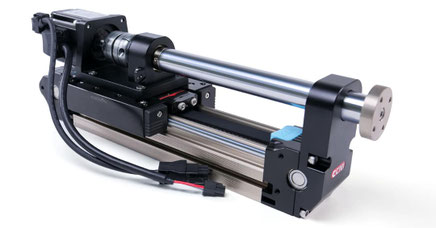

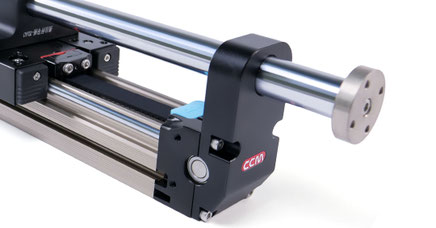

Silent Light-Load Push Cylinder: Designed for smooth, quiet linear motion in applications that require gentle pushing or precision positioning.

High Precision: Offers ±0.04 mm repeatability, ensuring accurate, repeatable micro-motion for small automation systems.

Fixed-Length, Compact Design: Max stroke 300 mm, perfect for machines needing short, controlled linear travel.

Ideal for Light Loads: Handles 2–6 kg, making it ideal for lightweight mechanisms, feeders, testing equipment, and compact robots.

Ultra-Quiet & Low Vibration: TSW patented timing belt + CNC pulleys deliver silent, stable movement with up to 20% noise reduction.

Corrosion-Resistant & Durable: Hardened aluminum profile, plated rods, and high-quality endblocks ensure long service life.

Maintenance-Free Operation: Requires only minimal attention—occasional lubrication and belt tensioning.

Reliable for Continuous Use: Engineered for consistent performance and long-term reliability across industrial applications.

360° Rotating Push Cylinder: Unique design integrates full rotation, ideal for applications needing both linear push and rotational positioning.

Silent, Ultra-Smooth Motion: TSW patented timing belt + CNC pulleys reduce noise by up to 20%, making it perfect for sensitive environments.

High Precision: Offers ±0.04 mm repeatability, ensuring stable and accurate micro-motion for light automation.

Fixed-Length Compact System: Max stroke 300 mm, excellent for short, controlled linear movements in compact machines.

Light-Load Capacity: Supports 3–6 kg, making it ideal for feeding, small assembly, testing, and precision handling tasks.

Corrosion-Resistant & Durable: Hardened aluminum body, plated rods, and high-end endblocks guarantee long service life.

Minimal Maintenance: Plated bearings and rods require only occasional lubrication and belt tensioning.

Reliable for Continuous Use: Engineered for stable performance under frequent cycling and light mechanical loads.

Super Slim & Compact: Designed with a very thin profile, perfect for tight or confined spaces where other actuators can’t fit.

Silent, Low-Speed Motion: Extremely quiet operation with smooth linear travel, ideal for small automation and sensitive environments.

Light-Load Performance: Handles up to 3 kg, making it suitable for 3D printers, card/document handling, and lightweight inspection systems.

High Precision: Offers ±0.04 mm repeatability, ensuring stable and accurate positioning even in tiny strokes.

Easy Belt Tensioning: Simplified endblock design allows quick and convenient belt adjustments during installation or maintenance.

Custom Lengths up to 2 m: Supports long travel for compact machines, desktop robots, and inspection stages.

Low Maintenance: Plated rods and bearings require only minimal lubrication and keep wear extremely low.

Smooth & Low Vibration: Ensures consistent, stable motion for high-quality printing, scanning, or light robotic tasks.

Super Slim Profile: Ideal for tight and confined spaces, with a compact body and lightweight design.

Light-Load & Low-Speed: Supports up to 3 kg at controlled speeds, perfect for delicate or lightweight automation.

High Precision: Provides ±0.05 mm repeatability, ensuring accurate, consistent positioning for small-scale tasks.

Moderate Dust Protection: Suitable for semi-harsh environments thanks to its partially enclosed structure.

Plastic Slide Technology: Uses engineered plastic slides instead of bearings, delivering silent, smooth motion with fewer wear points.

Easy Belt Tensioning: Belt-tightening system integrated directly on the carriage for fast adjustments without disassembly.

Custom Lengths up to 2 m: Flexible and adaptable to compact machine designs.

Low Maintenance: Plated rods and slide mechanism require almost no lubrication and minimal servicing.

Corrosion-Resistant & Durable: Aluminum profile + plated components extend service life in heavy-use environments.

Perfect for Small Automation: Great for 3D printers, card/document handling, and light camera positioning.
