automated glue and filling machine

Precision servo motor linear gluing robot
Precision servo motor linear gluing robot

If you need to assembly a linear robot arm, we can provide you a whole set of parts, from linear rail motor & driver to cable chain etc. Cost-effective solution is always get good reputation from our customers.

CCM linear rails advantages at a glance:

Lubrication-free

low noise and smooth sliding

Resistance to dirt

Long service life

Corrosion-resistant

high accuracy


Especially suitable struture for use in precision servo motor linear gluing robot

We offer motorized stages that can be assembled into many different configurations; for example, XY stages, XYZ stages . We list a few common XY stage combinations here, but you can select your own combination of family, travel and lead screw pitch in each axis to build the stage you need. We ship multiple stages un-assembled to avoid damage to the moving parts. Our families of linear stages are listed below. Please refer to the individual product family web page for specifications.

versatile design for various configuration. The Length of linear rail can be customized as per your requests.



1. TWO AXIS LINEAR TABLE



TWO AXIS LINEAR TABLE
TWO AXIS LINEAR TABLE
TWO AXIS LINEAR TABLE
TWO AXIS LINEAR TABLE

2. XYZ LINEAR STAGE



XYZ LINEAR STAGE
XYZ LINEAR STAGE
XYZ LINEAR STAGE
XYZ LINEAR STAGE


Application examples

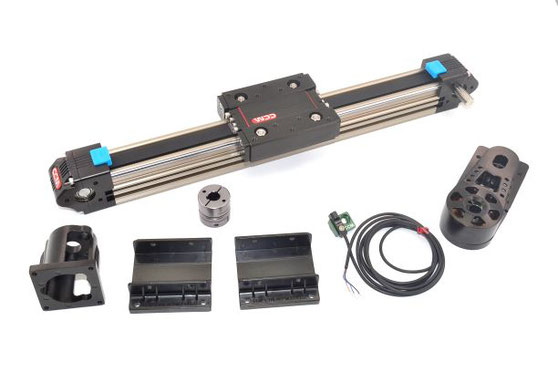

Recommended linear guide rails

recommended linear guide rails

CCM linear modules are applied in multiple fields, including robots,  camera track, laser engraving and cutting, glue dispenser, 3D printer, aerospace, laboratory test, scanning, indexing and positioning, moving sensors, automation, factory conveyor.

The features of CCM linear module/ linear guide/ linear rail/ linear actuator are
1) high accuracy, 2) customized length up to 6 meter Automation Technology are high quality, high precision, immaculate s,

3) anti-corrosion, 4) maintenance-free, 5) noiseless, 6) low vibration, 7) high reliability,

8)  high durability, 9) high speed up to 4.5M/s.
