CCM Linear Module Series

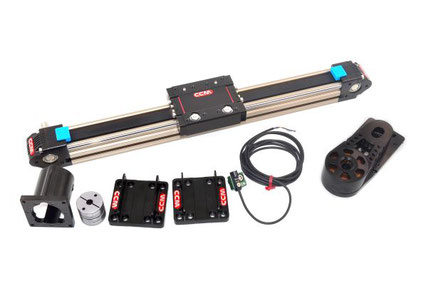

The W series Our first linear motion module, and the most sell linear guide rail in China suited for a variety of automation applications. Key features include high precision with 0.05 mm straightness, customizable lengths (up to 6 meters), and load capacities ranging from 10 kg to 35 kg. With speeds up to 2 m/s and torque capabilities up to 13.5 N·m, these modules provide smooth and reliable motion. The W series is ideal for medium to heavy-duty applications such as CNC machines, pick-and-place systems, robotic arms, material handling, packaging, and inspection stations. Their customizable lengths and high precision make them perfect for both small and large-scale automation tasks requiring flexibility, durability, and accuracy.

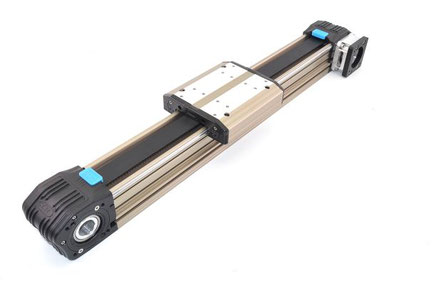

The L series offers a larger carriage, ideal for applications that requires large or unconventional objects motion. Linear motion systems designed for medium to heavy-duty automation applications. Key features include high precision with 0.05 mm straightness, customizable lengths (up to 6 meters), and load capacities ranging from 20 kg to 60 kg. With speeds of up to 2 m/s and torque capabilities up to 13.5 N·m, these systems provide smooth and reliable motion. The L series is ideal for applications such as CNC machines, robotic arms, pick-and-place systems, material handling, and inspection systems. Their customizable lengths and high precision make them perfect for both small and large-scale automation tasks requiring flexibility, durability, and accuracy.

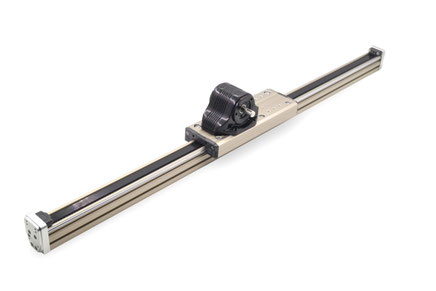

The Z series offers a motor on carriage, specially design for those compact applications that requires weight dynamic balance. Key features include high precision with 0.05 mm straightness, customizable lengths (up to 6 meters), and load capacities ranging from 20 kg to 60 kg. With speeds up to 2 m/s and torque capabilities up to 13.5 N·m, these modules ensure smooth, reliable, and precise motion. The Z series is particularly suited for medium to heavy-duty applications such as robotic arms, pick-and-place systems, material handling, packaging, and inspection systems. Their customizable lengths and high precision make them perfect for applications requiring flexibility, durability, and accuracy across both small and large-scale tasks.

The J series offers a belt tension at the end block, which offer advantages to those applications that cant have access or cant uninstall the application object out of the carriage. Linear motion systems tailored for light to medium-duty applications. Key features include 0.05 mm straightness, customizable lengths (up to 6 meters), and load capacities ranging from 10 kg to 25 kg. With speeds up to 1.5 m/s and torque capabilities up to 6.5 N·m, these systems provide smooth, accurate, and dependable motion. The J series is ideal for applications such as small robotic arms, pick-and-place systems, automated testing stations, and material handling. Their customizable lengths and high precision make them perfect for tasks requiring reliability, flexibility, and efficiency in both small-scale and moderate automation tasks.

The T series provides a compact and reliable line of belt-driven linear motion modules tailored for light-duty applications. Key specifications include high positioning accuracy of ±0.05 mm, stroke options from 50 mm up to 300 mm, and rated load capacity of 5 kg. With a consistent pitch of 75 mm and torque support up to ≤3.5 N·m, the T series ensures smooth, low-vibration operation. Motor compatibility includes Nema23 stepper motors and 60W servo motors, offering flexibility for different control systems. The T series is well-suited for precision-driven setups such as sensor adjustment, small-scale robotic arms, applicator positioning, and compact pick-and-place systems. Its lightweight build and high precision make it ideal for space-sensitive automation projects that demand reliability, quiet performance, and ease of integration.
