• Guide Width: 60 mm

• Max Load: 25 kg

• Pitch: 95 mm

• Synchronous Wheel Spec: STD5M-19Z

• Recommended Speed: ≤ 2 m/s

• Customized Length: Up to 6 meters

• Input Torque: ≤ 6.5 N·m

• Belt Spec: PU-5M-20 (steel wire)

• Straightness: 0.05 / 300 mm

• Applicable Motors:

  • Stepper Motor: 57/86 (DC/Speed Reducer Set)

  • Servo Motor: 750W (Direct Connection); 200W/400W (DC/Speed Reducer Set)

• Suggested Length Adjustment: Effective stroke + 350 mm (with length increments of 50 mm, e.g., 1000 mm, 1050 mm, 1100 mm)

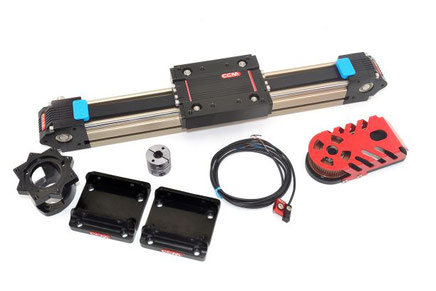

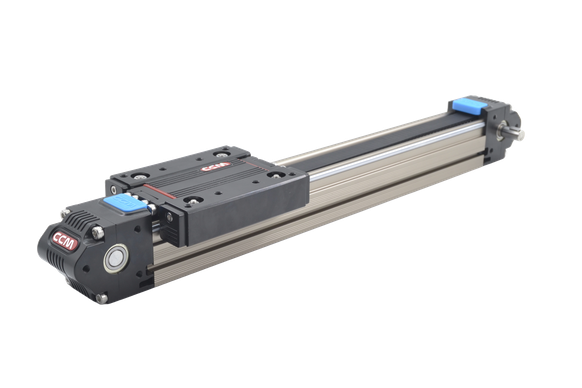

This covers the key parameters for the J60-25 linear motion module. If you require the full data sheet of the technical parameters, please contact us.

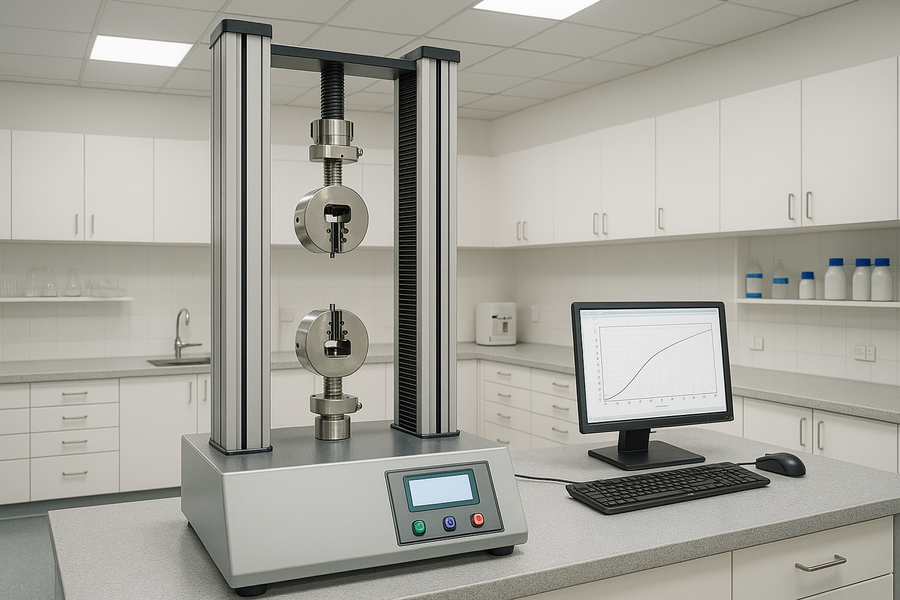

In industries where precision, speed, and reliability are critical, test equipment machines play a pivotal role in ensuring high-quality results. Whether used in automation, material testing, or calibration, the performance of test equipment largely depends on the quality of the actuators driving the motion. Our linear actuators belt driven systems offer an ideal solution, providing enhanced accuracy, durability, and efficiency for a wide range of test equipment applications.

1. Precision Movement for Accurate Test Results

When it comes to test equipment, precision is paramount. Whether you're testing materials, calibrating machinery, or measuring complex parameters, our linear actuators belt driven systems ensure smooth and precise motion. These actuators move components with minimal play, allowing test equipment to position sensors, probes, or samples with the highest accuracy.

How It Benefits Test Equipment:
Accurate motion ensures that test samples are positioned correctly every time, reducing the chances of errors and ensuring reliable results. This is essential for applications like material testing, where even slight variations in positioning can lead to inaccurate readings.

2. Increased Speed and Throughput

Efficiency is key in testing operations, especially in high-demand environments. Our linear actuators belt driven systems offer rapid movement with reduced friction, which helps test equipment complete test cycles faster without compromising accuracy. This speed boost enhances throughput, allowing you to test more samples in less time.

How It Benefits Test Equipment:
With quicker cycle times, our linear actuators belt driven systems help increase productivity in testing environments. Whether it's for product development, quality control, or research, faster testing leads to more efficient workflows and higher output.

3. Enhanced Durability and Reliability

Test equipment is often subjected to continuous use, which requires durable components that can withstand demanding conditions. Our linear actuators belt driven systems are built to endure heavy loads, frequent motion, and extended use without degrading. This durability makes them a perfect fit for high-performance test equipment applications.

How It Benefits Test Equipment:
The robust design of our linear actuators belt driven systems ensures that your test equipment remains reliable over the long term, reducing the likelihood of breakdowns and minimizing the need for replacements. This durability ultimately leads to lower operational costs and less downtime.

4. Low Maintenance and Reduced Downtime

One of the biggest challenges with test equipment is maintaining optimal performance without frequent interruptions for repairs or servicing. Our linear actuators belt driven systems are engineered for low maintenance, thanks to self-lubricating components and a durable construction that minimizes wear and tear.

How It Benefits Test Equipment:
By requiring less maintenance, our linear actuators belt driven systems ensure that your test equipment operates smoothly without costly downtime. This reliability keeps your testing operations running at peak efficiency, allowing for uninterrupted production and continuous quality testing.

5. Flexibility and Customization for Various Applications

Test equipment machines come in all shapes and sizes, and each may have specific movement needs. Our linear actuators belt driven systems are highly customizable to meet the unique requirements of different testing applications. Whether you're testing small components or handling large items, these actuators can be tailored to fit your precise needs.

How It Benefits Test Equipment:
The flexibility of our linear actuators belt driven systems allows you to design and configure test equipment that is optimized for your specific testing processes, from precise positioning in a laboratory setting to heavy-duty motion in industrial testing.

6. Compact Design for Space Efficiency

In many testing environments, space is limited, and equipment must fit within tight or compact areas. Our linear actuators belt driven systems are designed to be space-efficient, ensuring that your test equipment remains compact without sacrificing performance or functionality.

How It Benefits Test Equipment:
The compact design of these actuators allows you to integrate them into smaller test equipment setups, optimizing available space. This is especially useful in environments where test benches or laboratory spaces are at a premium.

7. Quiet and Smooth Operation

Noise and vibration can be disruptive in testing environments, especially when dealing with sensitive equipment or highly accurate measurements. Our linear actuators belt driven systems operate with minimal noise and vibration, ensuring a smooth and quiet testing process.

How It Benefits Test Equipment:
Reduced noise and vibration enhance the overall testing experience, providing a more stable environment for conducting tests. This is particularly important when using equipment that requires delicate handling or high levels of precision, such as optical or electronic testing devices.

Conclusion:

Our linear actuators belt driven systems are designed to optimize the performance of test equipment machines by providing precise, fast, and reliable motion. From enhancing testing accuracy to reducing maintenance and downtime, these systems offer significant benefits in improving test equipment efficiency and productivity. Whether you're testing materials, calibrating machinery, or performing quality control checks, integrating our linear actuators belt driven systems will help streamline your operations, reduce costs, and ensure consistent, high-quality results.

By investing in our linear actuators belt driven systems, you're equipping your test equipment with the best tools for optimal performance, durability, and efficiency. Boost your testing operations and maintain high standards of quality with the precision and reliability of our advanced linear actuators.
