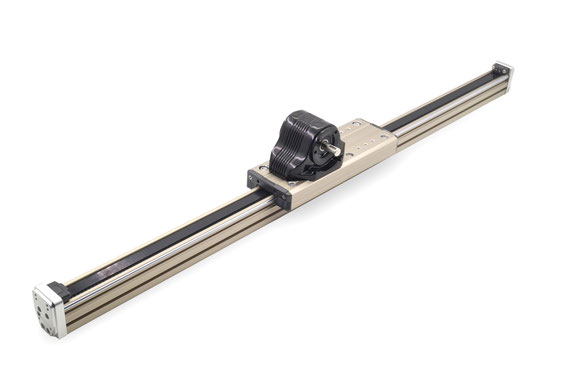

Z45-20 linear guide belt drive with motor on carriage for assembly lines
Looking for the Right Linear Guide Rail for Your Application?
We understand how overwhelming it can be to choose the right linear guide rail when so many options online look similar and claim high performance. That’s why we’ve made it simple for you.
You have two clear options:
1. Stay here and check the technical specifications of our precision-engineered linear guide rail modules.
or check
2. How to Choose the Right Belt-Driven Linear Rail—Without Wasting Time or Money. Avoid common pitfalls, decode tech specs, and find the rail that fits your application perfectly.
Technical parameter of Z45-20
-
Guide Width: 45 mm
-
Max Load: 20 kg
-
Pitch: 110 mm
-
Synchronous Wheel Spec: STD5M-22Z
-
Recommended Speed: ≤ 1.5 m/s
-
Customized Length: Up to 6 meters
-
Input Torque: ≤ 3 N·m
-
Belt Spec: PU-5M-15 (steel wire)
-
Straightness: 0.05 / 300 mm
-
Applicable Motors:
-
Stepper Motor: Nema 17 (DC/Speed Reducer Set)
-
Servo Motor: 100W (Direct Connection); 200W/400W (DC/Speed Reducer Set)
-
-
Suggested Length Adjustment: Effective stroke + 350 mm (with length increments of 50 mm, such as 1000 mm, 1050 mm, 1100 mm)
This summarizes the key technical details for the Z45-20 linear motion module. If you require the full data sheet of the technical parameters, please contact us.
Features
-
High Precision – Engineered for accurate, repeatable motion in demanding applications.
-
Custom Lengths (up to 4 meters) – Tailored to fit your exact design and space requirements.
-
Corrosion-Resistant – Built with materials that withstand harsh environments and extend service life.
-
Maintenance-Free Operation – Designed for long-term use without regular servicing.
-
Ultra-Quiet Performance – Operates smoothly with minimal noise, ideal for sensitive settings.
-
Low Vibration – Ensures stable, consistent movement even at high speeds.
-
Trusted Reliability – Proven performance with minimal downtime across industries.
-
Long-Lasting Durability – Withstands continuous use under heavy loads and extended cycles.
-

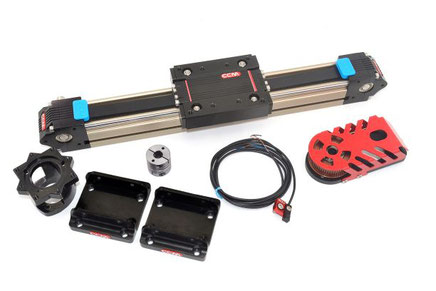

Modular & Expandable – Easily integrates with accessories, sensors, and multi-axis systems.
Applications
-
Robotic Arms – Enables precise, repeatable linear motion for multi-axis automation.
-
3D Printers – Supports smooth, high-speed movement for accurate layer deposition.
-
CNC Router Machines – Ensures stable, rigid travel for cutting, milling, and shaping tasks.
-
Pick-and-Place Systems – Delivers fast, accurate positioning for high-throughput assembly lines.
-
Adhesive Dispensing Systems – Maintains controlled motion for uniform glue application.
-
Automated Painting Machines – Provides smooth, vibration-free movement for even coatings.
-
Packaging Equipment – Supports efficient and synchronized operations in automated packing lines.
-
Industrial Coding & Labeling Machines – Enables precise product marking and serialization.
-
Gantry Robots – Ideal for large-area, multi-axis systems requiring synchronized linear travel.
How to order
-
Tell Us About Your Project
Share your application details, goals, or challenges—our team is here to help. -
Provide Key Specs
Let us know the load weight, stroke length for each axis, travel speed, structure type, or environmental requirements. -
Receive a Tailored Quote
We’ll assess your needs and send you a detailed cost estimate—fast and accurate. -
Confirm & Start Production
Once payment is received, we’ll move your order into production with precision and care. -
We Handle the Shipping
We arrange safe and efficient delivery to your door, anywhere in the world.
-
Share Your Feedback
Your input matters—let us know how we did so we can keep improving.

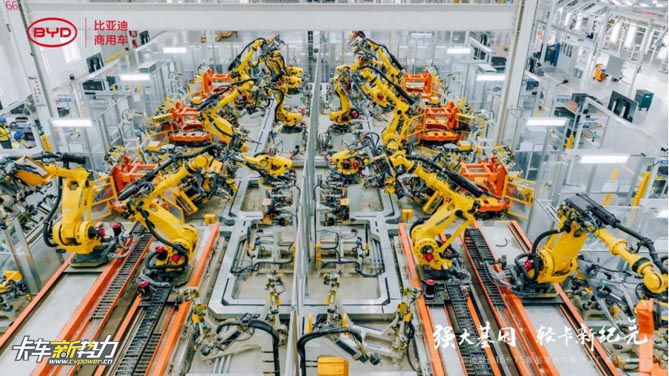

Boost Your Assembly Line Efficiency with Linear Guide Rails in Automation
In the world of modern manufacturing, precision and efficiency are key to maintaining a competitive edge. One of the smartest ways to enhance your assembly line is by integrating linear guide rails into your automation systems. This combination offers smooth, accurate movement, reducing errors and boosting production speeds. Here's how to leverage this technology for optimal performance.
1. Precision in Movement
A linear guide rail system provides stable, precise motion for automated machines and robotic arms. This ensures that parts are positioned and assembled accurately every time, minimizing the risk of errors in high-speed operations.
Tip: For assembly lines requiring high precision, opt for high-quality linear guide rails that can withstand heavy loads and offer minimal friction.
2. Increased Speed and Productivity
By integrating linear guide rails into your automation system, you can significantly increase the speed of your assembly line. These systems allow for fast, efficient movement along multiple axes, improving cycle times and overall throughput.
Tip: Combine linear guides with programmable automation systems for seamless control over the assembly process, maximizing productivity.
3. Reduced Maintenance Costs
Linear guide rails are known for their low maintenance requirements. When properly installed and aligned, they can operate for long periods without significant wear, reducing downtime and lowering maintenance costs on your assembly line.
Tip: Regularly inspect your guide rails and lubrication systems to ensure long-lasting performance and avoid unnecessary repairs.
4. Flexibility in Design
A linear guide rail system offers flexibility for various automation applications. Whether it's moving small components or larger, heavier parts, these systems can be customized to fit the needs of your assembly line.
Tip: Customize your system with different rail lengths and carriage configurations to fit the specific requirements of your production process.
5. Improved Worker Safety
By automating tasks that are repetitive or hazardous, linear guide rails help create a safer work environment. With robots handling more dangerous assembly tasks, workers can focus on more complex jobs, reducing the risk of injuries.
Tip: Combine safety sensors and automated control systems for further protection and efficiency on the assembly line.
Conclusion:
Incorporating linear guide rails into your assembly line automation is a proven way to
enhance precision, speed, and overall productivity. By improving the efficiency of your production processes, you can stay ahead of the competition and achieve higher-quality results. Upgrade
your automation system today to optimize your assembly line and reduce operational costs.
