• Guide Width: 60 mm

• Max Load: 40 kg

• Pitch: 95 mm

• Synchronous Wheel Spec: STD5M-19Z

• Recommended Speed: ≤ 2 m/s

• Customized Length: Up to 6 meters

• Input Torque: ≤ 8.5 N·m

• Belt Spec: PU-5M-20 (steel wire)

• Straightness: 0.05 / 300 mm

• Applicable Motors:

  • Stepper Motor: 57/86 (DC/Speed Reducer Set)

  • Servo Motor: 750W (Direct Connection); 200W/400W (DC/Speed Reducer Set)

• Suggested Length Adjustment: Effective stroke + 310 mm (in increments of 50 mm, such as 1000 mm, 1050 mm, 1100 mm)

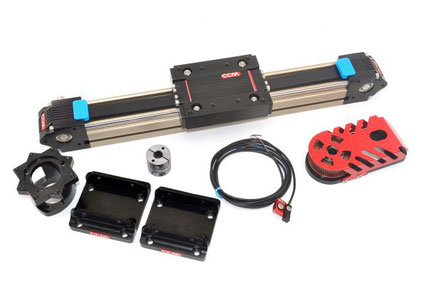

This encapsulates the key technical details for the L60-40 linear motion module. If you require the full data sheet of the technical parameters, please contact us.

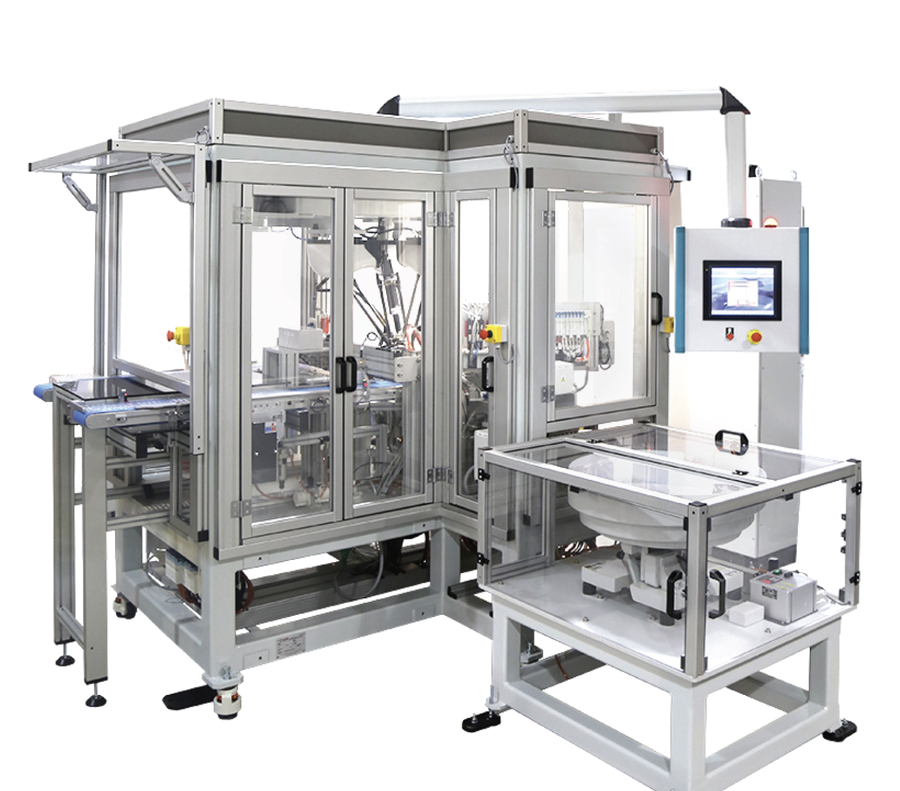

The Advantages of Our Linear Guide Rails in Medical Equipment: Precision, Reliability, and Hygiene

In the medical industry, the demand for precision, reliability, and cleanliness is paramount. Whether it’s for diagnostic equipment, surgical robots, or laboratory automation, linear guide rails play a crucial role in the performance of medical devices. At CCM Automation, we design and manufacture linear guide rails that meet the highest standards for accuracy and hygiene. In this blog, we’ll explore the key advantages of using our linear guide rails in medical equipment.

1. Unmatched Precision for Critical Applications

Medical equipment, especially devices like diagnostic machines, surgical robots, and imaging systems, require precise movement to ensure accurate results. Our linear guide rails are engineered to deliver exceptional accuracy and smooth motion, even under demanding conditions. With tight tolerances and minimal play, these rails ensure that medical devices perform with the highest level of precision.

How It Benefits Medical Equipment:
Accurate positioning is vital in medical applications, where even small deviations can lead to incorrect readings or unsafe procedures. Our linear guide rails ensure the exact movements needed in critical equipment like MRI machines, surgical arms, and blood analyzers.

2. High Durability in Demanding Environments

Medical equipment often operates in high-stress environments where consistent performance is required. Our linear guide rails are built to withstand demanding conditions, offering long-lasting durability even when exposed to frequent use and challenging operating environments. Whether it’s constant motion or exposure to cleaning agents, our rails maintain performance without compromising reliability.

How It Benefits Medical Equipment:
With their robust design, linear guide rails ensure the continued reliability of medical devices. These systems are built to last, minimizing the need for maintenance and preventing costly downtime. Medical facilities can depend on equipment that operates efficiently day after day.

3. Corrosion-Resistant Materials for Hygiene

In the medical field, hygiene is a top priority. Our linear guide rails are manufactured with corrosion-resistant materials, which are especially important in environments exposed to frequent cleaning or sterilization processes. Our rails can withstand exposure to harsh cleaning chemicals, moisture, and sterilizing agents, ensuring the longevity and cleanliness of the equipment.

How It Benefits Medical Equipment:
With the healthcare industry’s strict hygiene standards, linear guide rails ensure that medical devices remain free from contamination. These rails help prevent the buildup of harmful bacteria, rust, or corrosion, which could compromise both the functionality and cleanliness of the equipment.

4. Smooth Motion for Sensitive Procedures

Many medical applications, particularly in surgical robots and imaging equipment, require smooth and controlled motion. Our linear guide rails offer minimal friction and consistent motion, which is essential for preventing disruptions in sensitive medical processes.

How It Benefits Medical Equipment:
In robotic surgeries or imaging processes like CT scans, smooth and controlled motion is essential for maintaining the highest quality results. Our linear guide rails enable uninterrupted, precise motion, which is crucial for accurate procedures, ensuring patient safety and successful outcomes.

5. Low Maintenance for Continuous Operation

Medical equipment is often in use for long hours, especially in hospitals and diagnostic centers. The low-maintenance nature of our linear guide rails ensures that medical devices can operate continuously with minimal intervention. This is particularly beneficial in environments where uptime is critical.

How It Benefits Medical Equipment:
Our rails require minimal maintenance, reducing the need for frequent servicing or part replacements. This ensures that medical equipment remains operational for extended periods, enhancing productivity and preventing unnecessary downtime.

6. Customization to Meet Specific Medical Needs

At CCM Automation, we understand that medical applications are diverse and often require customized solutions. Our linear guide rails can be tailored to meet the unique specifications of different medical devices. Whether it's for compact diagnostic machines or large-scale robotic surgery systems, we offer flexible configurations that can fit your exact needs.

How It Benefits Medical Equipment:
Customization ensures that linear guide rails seamlessly integrate into your medical devices, offering the perfect balance of performance, space efficiency, and durability. This allows manufacturers to design equipment that meets the evolving needs of the healthcare industry.

Conclusion:

Our linear guide rails are designed to enhance the performance, durability, and hygiene of medical equipment. From providing precision for diagnostic devices to offering smooth motion for surgical robots, these rails ensure that medical devices operate reliably and safely in even the most demanding environments. By choosing our linear guide rails, you’re investing in equipment that adheres to the highest standards of quality, precision, and hygiene — critical factors in the medical industry.
