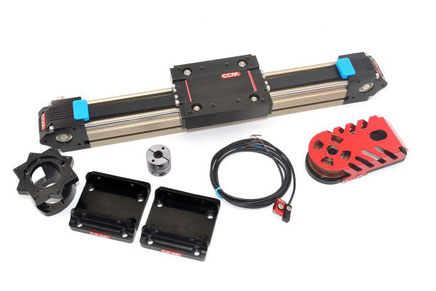

L80-60 Linear guide rails for Inspection Systems

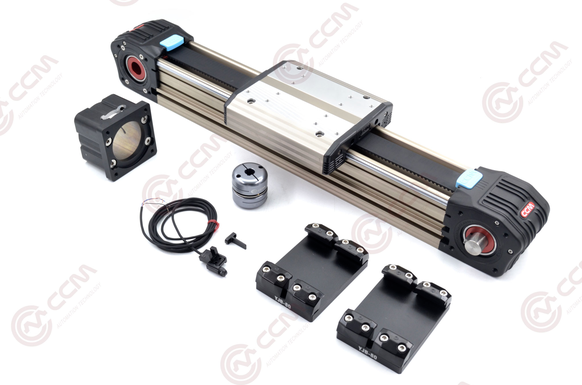

Linear modular actuators belt driven
Linear modular actuators belt driven

Looking for the Right Linear Guide Rail for Your Application?

We understand how overwhelming it can be to choose the right linear guide rail when so many options online look similar and claim high performance. That’s why we’ve made it simple for you.



You have two clear options:



1. Stay here and check the technical specifications of our precision-engineered linear guide rail modules.



or check



2. How to Choose the Right Belt-Driven Linear Rail—Without Wasting Time or Money. Avoid common pitfalls, decode tech specs, and find the rail that fits your application perfectly.


Technical parameters of L80-60

  • Guide Width: 80 mm

  • Max Load: 60 kg

  • Pitch: 190 mm

  • Synchronous Wheel Spec: STD5M-38Z

  • Recommended Speed: ≤ 2 m/s

  • Customized Length: Up to 6 meters

  • Input Torque: ≤ 13.5 N·m

  • Belt Spec: PU-5M-33 (steel wire)

  • Straightness: 0.05 / 300 mm

  • Applicable Motors:

    • Stepper Motor: 86 / 110 (Direct Connection)

    • Servo Motor: 400W / 750W / 1000W / 1500W (Direct Connection)

  • Suggested Length Adjustment: Effective stroke + 460 mm (in increments of 50 mm, such as 1000 mm, 1050 mm, 1100 mm)



This summarizes the technical details for the L80-60 linear motion module. If you require the full data sheet of the technical parameters, please contact us.

Features

  • High Precision – Engineered for accurate, repeatable motion in demanding applications.

  • Custom Lengths (up to 4 meters) – Tailored to fit your exact design and space requirements.

  • Corrosion-Resistant – Built with materials that withstand harsh environments and extend service life.

  • Maintenance-Free Operation – Designed for long-term use without regular servicing.

  • Ultra-Quiet Performance – Operates smoothly with minimal noise, ideal for sensitive settings.

  • Low Vibration – Ensures stable, consistent movement even at high speeds.

  • Trusted Reliability – Proven performance with minimal downtime across industries.

  • Long-Lasting Durability – Withstands continuous use under heavy loads and extended cycles.



  • Modular & Expandable – Easily integrates with accessories, sensors, and multi-axis systems.

Applications

  • Robotic Arms – Enables precise, repeatable linear motion for multi-axis automation.

  • 3D Printers – Supports smooth, high-speed movement for accurate layer deposition.

  • CNC Router Machines – Ensures stable, rigid travel for cutting, milling, and shaping tasks.

  • Pick-and-Place Systems – Delivers fast, accurate positioning for high-throughput assembly lines.

  • Adhesive Dispensing Systems – Maintains controlled motion for uniform glue application.

  • Automated Painting Machines – Provides smooth, vibration-free movement for even coatings.

  • Packaging Equipment – Supports efficient and synchronized operations in automated packing lines.

  • Industrial Coding & Labeling Machines – Enables precise product marking and serialization.

  • Gantry Robots – Ideal for large-area, multi-axis systems requiring synchronized linear travel.

How to order

  • Tell Us About Your Project
    Share your application details, goals, or challenges—our team is here to help.

  • Provide Key Specs
    Let us know the load weight, stroke length for each axis, travel speed, structure type, or environmental requirements.

  • Receive a Tailored Quote
    We’ll assess your needs and send you a detailed cost estimate—fast and accurate.

  • Confirm & Start Production
    Once payment is received, we’ll move your order into production with precision and care.

  • We Handle the Shipping
    We arrange safe and efficient delivery to your door, anywhere in the world.



  • Share Your Feedback
    Your input matters—let us know how we did so we can keep improving.


Boost Your Inspection Systems with Our Linear Actuator Belt Driven Systems

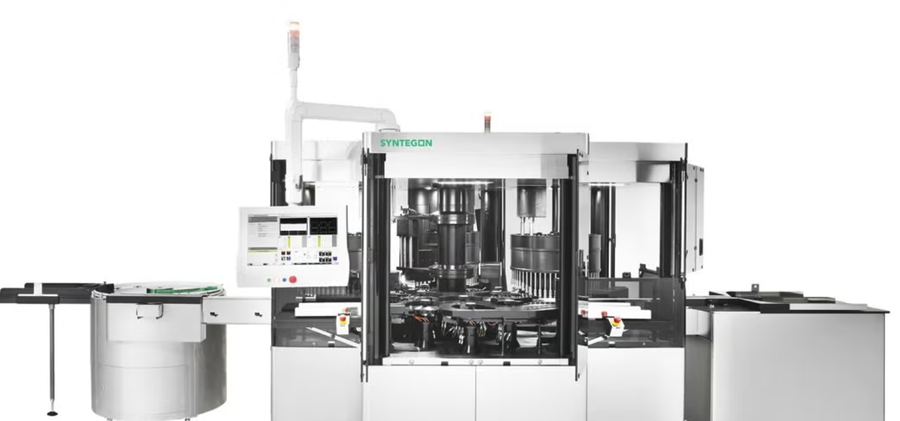

Inspection Systems with Our Linear Actuator Belt Driven Systems with CCM automation
Inspection Systems with Our Linear Actuator Belt Driven Systems with CCM automation

Optimizing Inspection Systems with Our Linear Actuator Belt Driven: Precision and Efficiency

Inspection systems are crucial for quality control in various industries, from manufacturing and automotive to electronics and pharmaceuticals. These systems ensure that products meet the highest standards of quality and performance before reaching the market. To ensure accuracy, speed, and reliability, our linear actuator belt driven systems are a key component in modern inspection systems.

1. Precision Movement for Accurate Inspections

In inspection systems, accuracy is essential. Whether it’s inspecting the surface quality of a product or checking for defects in a circuit board, the system must move with extreme precision. Our linear actuator belt driven systems provide smooth, consistent motion with minimal play, ensuring that the inspection equipment can position itself accurately over the item being inspected.

How It Benefits Inspection Systems:
The precision offered by our linear actuator belt driven systems ensures that inspection devices, such as cameras or sensors, are in the correct position at all times. This leads to more accurate measurements, reducing the risk of false positives or missed defects, ultimately improving the reliability of quality control processes.

2. Increased Speed and Throughput

In high-volume production environments, speed is essential. Our linear actuator belt driven systems enable inspection systems to operate quickly and efficiently, moving inspection equipment along the necessary paths with minimal resistance. This speed translates to higher throughput, allowing manufacturers to inspect more products in less time.

How It Benefits Inspection Systems:
Faster inspection times increase productivity, enabling manufacturers to perform quality control without slowing down the production line. With our linear actuator belt driven systems, the inspection process can be automated to meet high demands, making it possible to inspect a large volume of products without sacrificing quality.

3. Durability and Long-Term Reliability

Inspection systems often operate under continuous or high-demand conditions, where equipment must remain reliable over extended periods. Our linear actuator belt driven systems are built to withstand heavy loads and repetitive motions without degrading. Their durability ensures that the inspection system performs consistently over time, even in demanding environments.

How It Benefits Inspection Systems:
The longevity of our linear actuator belt driven systems minimizes maintenance and replacement costs, reducing downtime and ensuring that inspection systems can function efficiently for long periods. Reliable systems are essential in industries like automotive and electronics, where product quality and operational efficiency are critical.

4. Low Maintenance for Continuous Operation

In industries that rely heavily on inspection systems, minimizing downtime is essential. Our linear actuator belt driven systems require minimal maintenance due to their low friction and high durability. This ensures that the inspection system remains operational with fewer interruptions, which is crucial for high-output manufacturing lines.

How It Benefits Inspection Systems:
The reduced need for maintenance on our linear actuator belt driven systems allows inspection systems to operate continuously, maintaining high inspection throughput without costly downtime for repairs or adjustments. This keeps production on track and enhances overall operational efficiency.

5. Flexibility and Customization

Every inspection system has unique needs, whether it's inspecting a variety of products or requiring specific movement paths for the sensors or cameras. Our linear actuator belt driven systems can be customized to fit the exact specifications of the inspection system, ensuring optimal movement and performance.

How It Benefits Inspection Systems:
Customizable our linear actuator belt driven systems allow manufacturers to design inspection systems that cater to their specific needs. Whether it's adjusting for load capacity, speed, or travel distance, the flexibility of linear actuators ensures that the inspection system can handle the most complex and specialized tasks.

6. Space Efficiency for Compact Designs

In many industries, space is a limited resource, and inspection systems must fit within a confined area. Our linear actuator belt driven systems offer a compact solution that maximizes the use of available space. These systems are ideal for systems that need to operate within tight environments, ensuring that the inspection process remains efficient without occupying excessive floor space.

How It Benefits Inspection Systems:
By utilizing our linear actuator belt driven systems, manufacturers can design compact inspection systems that still deliver high performance. This is particularly useful in industries where space optimization is a priority, such as electronics assembly lines or small-scale manufacturing environments.

Conclusion:



Integrating our linear actuator belt driven systems into inspection systems offers a host of benefits, including precision, speed, durability, and low maintenance. These systems ensure that inspection systems can operate with accuracy and efficiency, whether it’s checking the quality of finished products or detecting defects in production. By enhancing the performance of your inspection systems with our linear actuator belt driven systems, you can increase throughput, reduce costs, and maintain the highest standards of quality control.
