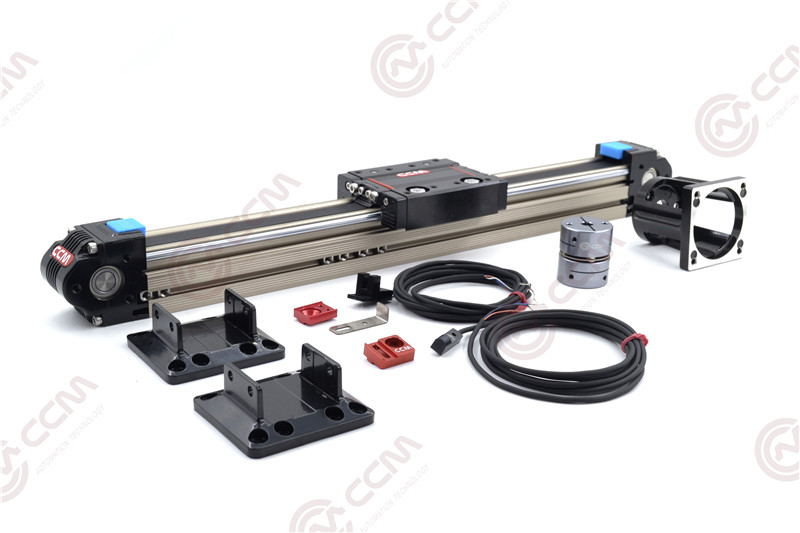

CCM W40-04 Linear Modular Belt Drive Rail

The W40-04 belt-driven linear actuator is a compact, high-precision solution designed for light-load automation, fast motion, and space-saving industrial applications.

High Speed Belt drive actuator for 1 to 4 kg load,
High Speed Belt drive actuator for 1 to 4 kg load,
Instant Quote

Technical parameters W40-04

Max Load

  • Horizontal: 4 kg
  • Vertical: 2 kg

Max Speed (Recommended Speed)

  • ≤ 1.5 m/s

Customizable Length

  • ≤ 20 Meters

Positioning Repeatability

  • ± 0.04 mm

Pitch

  • 75 mm

Applicable Motor

  • NEMA 17 / NEMA 23
  • 100 W / 200 W / 400 W

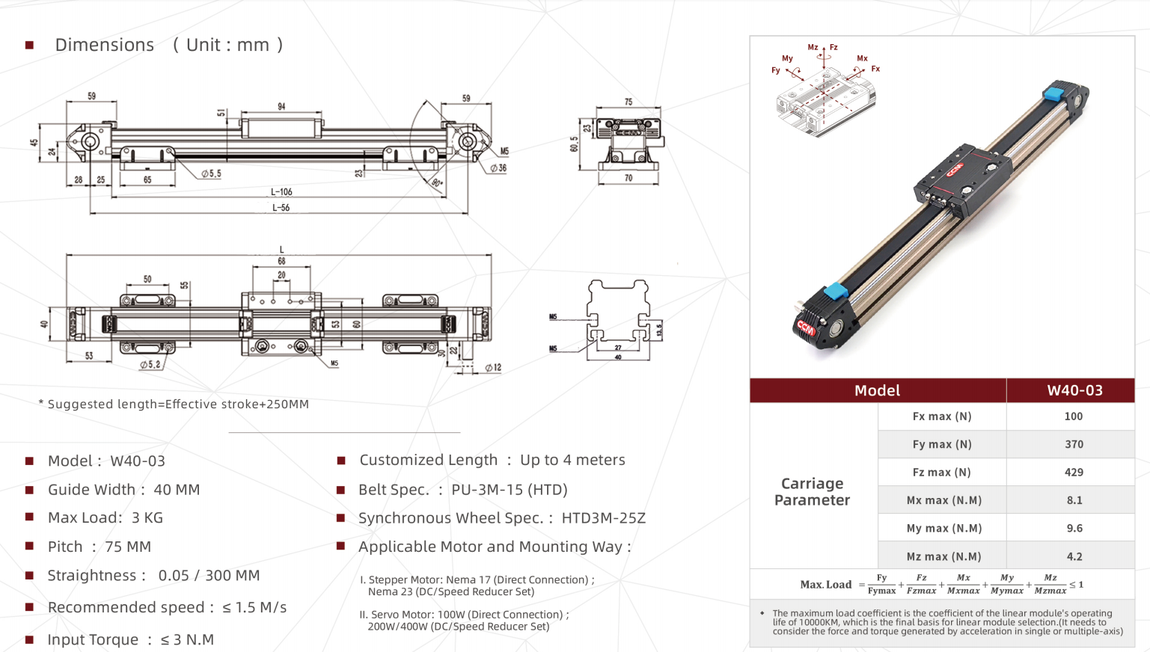

This information encapsulates the key technical details for the W40-03 linear motion module. If you require the full data sheet of the technical parameters, please contact us.


Features

  • High Precision Engineered for accurate, repeatable motion in demanding applications.

  • Custom Lengths (up to 20 meters) – Tailored to fit your exact design and space requirements.

  • Corrosion-Resistant – Built with materials that withstand harsh environments and extend service life.

  • Maintenance-Free Operation – Designed for long-term use without regular servicing.

  • Ultra-Quiet Performance – Operates smoothly with minimal noise, ideal for sensitive settings.

  • Low Vibration – Ensures stable, consistent movement even at high speeds.

  • Trusted Reliability – Proven performance with minimal downtime across industries.

  • Long-Lasting Durability – Withstands continuous use under heavy loads and extended cycles.

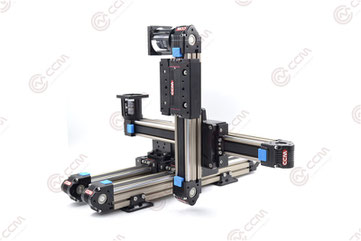

  • Modular & Expandable – Easily integrates with accessories, sensors, and multi-axis systems.

Applications

Best Belt Drive Actuators for 3D printers
Belt Drive Actuators for 3D Printers

Achieve high-precision printing

with our smooth and reliable linear

motion systems.

Best Belt Drive Actuators For Glue Dispensers
Belt Drive Actuators for Glue Dispensers

Enhance the accuracy and speed

of glue dispensers with our durable

actuators featuring high load capacity

Best Belt Drive Actuators For Pick And Place
Belt Drive Actuators for Pick And Place

Enable smooth, precise,

and repeatable movements

for various robotic tasks.


How to order

  • Tell Us About Your Project
    Share your application details, goals, or challenges—our team is here to help.

  • Provide Key Specs
    Let us know the load weight, stroke length for each axis, travel speed, structure type, or environmental requirements.

  • Receive a Tailored Quote
    We’ll assess your needs and send you a detailed cost estimate—fast and accurate.

  • Confirm & Start Production
    Once payment is received, we’ll move your order into production with precision and care.

  • We Handle the Shipping
    We arrange safe and efficient delivery to your door, anywhere in the world.

  • Share Your Feedback
  • Your input matters—let us know how we did so we can keep improving.
