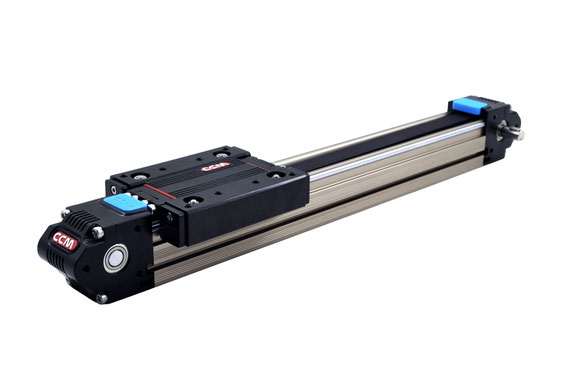

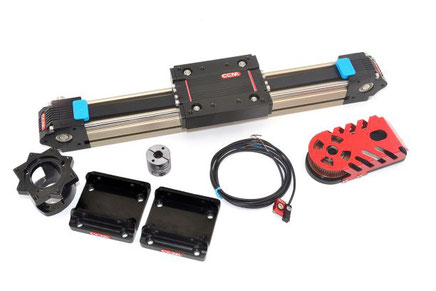

CCM W50-25 Linear guide rail for glue dispenser.

Linear guide belt driven for glue dispenser, actuators, sliders
Linear guide belt driven for glue dispenser

Looking for the Right Linear Guide Rail for Your Application?

We understand how overwhelming it can be to choose the right linear guide rail when so many options online look similar and claim high performance. That’s why we’ve made it simple for you.



You have two clear options:



1. Stay here and check the technical specifications of our precision-engineered linear guide rail modules.



or check



2. How to Choose the Right Belt-Driven Linear Rail—Without Wasting Time or Money. Avoid common pitfalls, decode tech specs, and find the rail that fits your application perfectly.


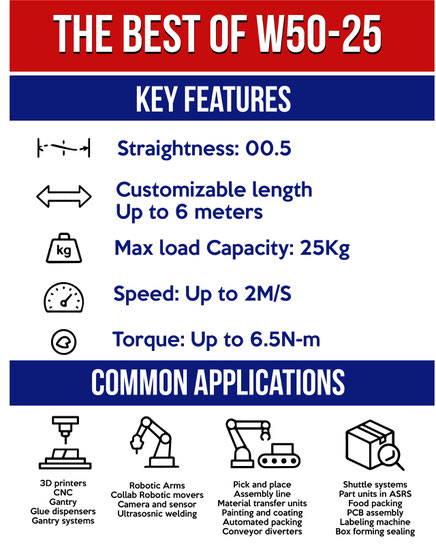

Technical Parameters W50-25

  • Guide Width: 50 mm

  • Max Load: 25 kg

  • Pitch: 95 mm

  • Synchronous Wheel Spec: STD5M-19Z

  • Recommended Speed: ≤ 2 m/s

  • Customized Length: Up to 6 meters

  • Input Torque: ≤ 6.5 N·m

  • Belt Spec: PU-5M-20 (steel wire)

  • Straightness: 0.05 / 300 mm

  • Applicable Motors:

    • Stepper Motor: 57 (DC/Speed Reducer Set); 86 (DC/Speed Reducer Set)

    • Servo Motor: 750W (Direct Connection); 200W/400W (DC/Speed Reducer Set)

  • Suggested Length Adjustment: Effective stroke + 290 mm, with increments of 50 mm (e.g., 1000 mm, 1050 mm, 1100 mm)



This encapsulates the main technical details for the W50-25 linear motion module . If you require the full data sheet of the technical parameters, please contact us.

Features

  • High Precision – Engineered for accurate, repeatable motion in demanding applications.

  • Custom Lengths (up to 4 meters) – Tailored to fit your exact design and space requirements.

  • Corrosion-Resistant – Built with materials that withstand harsh environments and extend service life.

  • Maintenance-Free Operation – Designed for long-term use without regular servicing.

  • Ultra-Quiet Performance – Operates smoothly with minimal noise, ideal for sensitive settings.

  • Low Vibration – Ensures stable, consistent movement even at high speeds.

  • Trusted Reliability – Proven performance with minimal downtime across industries.

  • Long-Lasting Durability – Withstands continuous use under heavy loads and extended cycles.



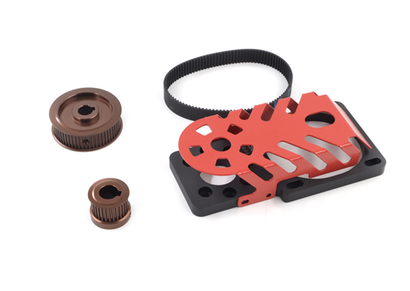

  • Modular & Expandable – Easily integrates with accessories, sensors, and multi-axis systems.

Applications

  • Robotic Arms – Enables precise, repeatable linear motion for multi-axis automation.

  • 3D Printers – Supports smooth, high-speed movement for accurate layer deposition.

  • CNC Router Machines – Ensures stable, rigid travel for cutting, milling, and shaping tasks.

  • Pick-and-Place Systems – Delivers fast, accurate positioning for high-throughput assembly lines.

  • Adhesive Dispensing Systems – Maintains controlled motion for uniform glue application.

  • Automated Painting Machines – Provides smooth, vibration-free movement for even coatings.

  • Packaging Equipment – Supports efficient and synchronized operations in automated packing lines.

  • Industrial Coding & Labeling Machines – Enables precise product marking and serialization.

  • Gantry Robots – Ideal for large-area, multi-axis systems requiring synchronized linear travel.

How to order

  • Tell Us About Your Project
    Share your application details, goals, or challenges—our team is here to help.

  • Provide Key Specs
    Let us know the load weight, stroke length for each axis, travel speed, structure type, or environmental requirements.

  • Receive a Tailored Quote
    We’ll assess your needs and send you a detailed cost estimate—fast and accurate.

  • Confirm & Start Production
    Once payment is received, we’ll move your order into production with precision and care.

  • We Handle the Shipping
    We arrange safe and efficient delivery to your door, anywhere in the world.



  • Share Your Feedback
    Your input matters—let us know how we did so we can keep improving.


Top 5 Things You Should Know Before Building an Automated Glue Dispenser

Top 5 Things You Should Know Before Building an Automated Glue Dispenser
Top 5 Things You Should Know Before Building an Automated Glue Dispenser



Build smarter. Waste less. Get perfect glue lines—every time.

Designing an automated glue dispenser? Whether it’s for packaging, electronics, or precision assembly, success comes down to a few key decisions. Here’s what you need to get right from the start:

1. Motion Matters Most

Accurate glue application starts with smooth, reliable movement.
Use belt-driven linear guide actuators—they’re fast, precise, and built for industrial work. They handle high speeds without losing accuracy, ideal for clean, consistent dispensing.

2. Match Your Pump to Your Glue

Viscosity changes everything.
Choose the right pump (screw, pneumatic, or volumetric) based on glue thickness. Use flow controllers and sensors for consistent volume, especially in micro-dosing or heat-sensitive applications.

3. Design for Easy Maintenance

Glue builds up. Don’t let it shut you down.
Use quick-release nozzles, accessible lines, and auto-purge functions. Make the dispensing head easy to clean and replace—this keeps uptime high.

4. Stability = Accuracy

Even small vibrations throw off your glue path.
Build on a rigid frame. Secure your actuators. Use proper calibration. A stable structure means better performance and longer life.

5. Think Integration and Safety

It’s not just about glue—it’s about the whole system.
Make sure your machine connects with PLCs, sensors, or vision systems. Add safety features like emergency stops and limit switches. Plan for control, feedback, and protection from day one.



✅ Pro Tip:

Your motion system is the foundation. Start strong with industrial belt-driven actuators that are reliable, fast, and easy to maintain.



Need help choosing the right components? Let’s build it together.
