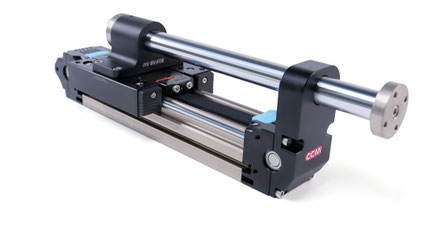

Push cylinder
Looking for the Right Linear Guide Rail for Your Application?
We understand how overwhelming it can be to choose the right linear guide rail when so many options online look similar and claim high performance. That’s why we’ve made it simple for you.
You have two clear options:
1. Stay here and check the technical specifications of our precision-engineered linear guide rail modules.
or check
2. How to Choose the Right Belt-Driven Linear Rail—Without Wasting Time or Money. Avoid common pitfalls, decode tech specs, and find the rail that fits your application perfectly.
Features
1) high accuracy
2) customised length up to 4 meters
3) anti-corrosion
4) maintenance-free
5) noiseless
6) low vibration
7) high reliability
8) high durability
9) flexible add-ons
Applications
Sensor / camera adjustment
Applicator/dispenser positioning
Ejector/diverter mechanisms
Pneumatic cylinder replacement
How to order
1) Share your idea with us.
2) Provide us with weight of the load and stroke length for each axis, together with travel speed and structure.
3) Estimate costs/ quotation.
4) Put your order to production after payment.
5) Arrange the shipping for you.
6) Comment on the products and service so we can do better.
Technical Parameters
T40 Series Linear Module Specifications
-
Pitch: 75 mm
-
Linear Accuracy: 0.05 mm
-
Rated Load: 5 kg
-
Applicable Load: 0–3 kg
-
Torque: ≤ 3.5 N·m
-
Applicable Motor:
-
Nema23 Stepper Motor
-
60 Servo Motor
-
Model Variants:
-
T40-50
-
Length: 282 mm
-
Weight: 1.71 kg
-
Rated Stroke: 50 mm
-
-
T40-100
-
Length: 332 mm
-
Weight: 1.85 kg
-
Rated Stroke: 100 mm
-
-
T40-150
-
Length: 382 mm
-
Weight: 2.00 kg
-
Rated Stroke: 150 mm
-
-
T40-200
-
Length: 432 mm
-
Weight: 2.14 kg
-
Rated Stroke: 200 mm
-
-
T40-250
-
Length: 482 mm
-
Weight: 2.28 kg
-
Rated Stroke: 250 mm
-
-
T40-300
-
Length: 532 mm
-
Weight: 2.42 kg
-
Rated Stroke: 300 mm
-
Other Models

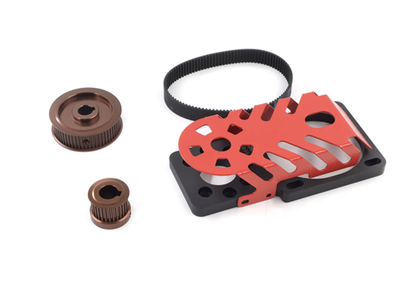

Accesories for linear guide rails
